Model NO.: JX-080
Commercial ultrasonic cleaning technology meets all demands with 40kHz-80kHz adjustable frequencies.
Specifically developed for:
◼️ Critical cleaning of CNC machine parts
◼️ FDA-compliant medical device preparation
◼️ Jewelry workshop chain cleaning solutions
◼️ Electronics manufacturing flux removal
◼️ Dental lab impression tool sterilization
Product Feature

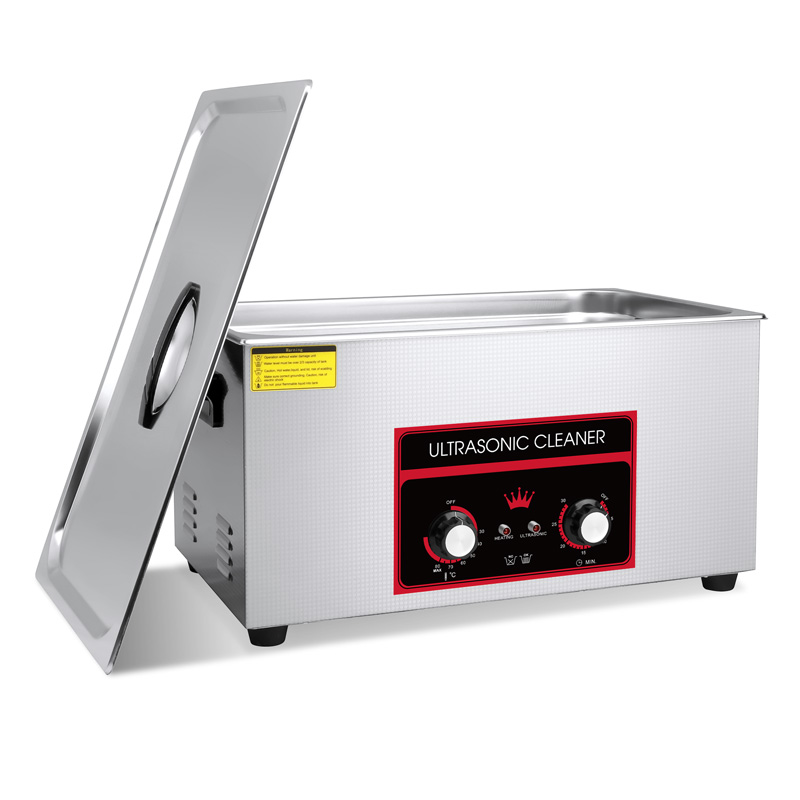

The Redcrown 22L mechanical ultrasonic cleaner is designed for commercial workshops, laboratories, jewelry businesses and industrial parts-cleaning applications.
With a 22L cleaning tank, mechanical dial control, heating function and adjustable cleaning timer, this large-capacity ultrasonic cleaner helps remove oil, grease, dust, polishing compounds, flux residues and other contaminants from complex parts.
The spacious tank provides sufficient cleaning volume for larger components and batch processing, while the benchtop-style structure remains suitable for workshops, maintenance stations and professional cleaning areas.
For more capacity options and different control configurations, explore our commercial benchtop ultrasonic cleaner range.
22L / 5.81 gal cleaning capacity
Mechanical knob control
40kHz ultrasonic cleaning frequency
Adjustable frequency configurations available
Heating function for oil and grease removal
0–30-minute cleaning timer
Temperature setting up to 80°C
SUS 304 stainless steel cleaning tank
Protective cleaning basket
Quick-drain valve
Emergency fuse protection
Automatic thermostat control
Safety vents for heat management
Suitable for industrial and commercial cleaning
| Item | Specification |
|---|---|
| Product Type | Mechanical Ultrasonic Cleaner |
| Model | JX-080 |
| Tank Capacity | 22L / 5.81 gal |
| Tank Size | 500 × 300 × 150 mm |
| Overall Size | 530 × 330 × 280 mm |
| Ultrasonic Frequency | 40kHz standard |
| Frequency Options | Adjustable frequency configuration available |
| Control System | Mechanical Dial Control |
| Timer | 0–30 minutes |
| Temperature Setting | 20–80°C |
| Tank Material | SUS 304 Stainless Steel |
| Cleaning Basket | Included |
| Drainage | Quick-Drain Valve |
| Safety Function | Fuse Protection and Automatic Thermostat |
| Installation | Benchtop / Workstation |
| Main Applications | CNC Parts, Machinery Parts, Tools, Jewelry and Precision Components |
Please confirm the final ultrasonic and heating power values against the latest JX-080 datasheet before publishing.
The 22L tank is designed for users who need more cleaning space than compact 1.3L, 3.2L or 6.5L ultrasonic cleaners.
It is suitable for:
Larger workpieces
Multiple small parts in one batch
Workshop tools and components
CNC-machined parts
Industrial maintenance parts
Jewelry production and repair
Dental laboratory tools
Electronics manufacturing components
The tank size is 500 × 300 × 150 mm, while the overall machine size is 530 × 330 × 280 mm. Before ordering, buyers should confirm that the tank and machine footprint are suitable for the available workspace.
The workpiece should be fully immersed in the cleaning solution and placed inside the basket without directly touching the tank bottom.

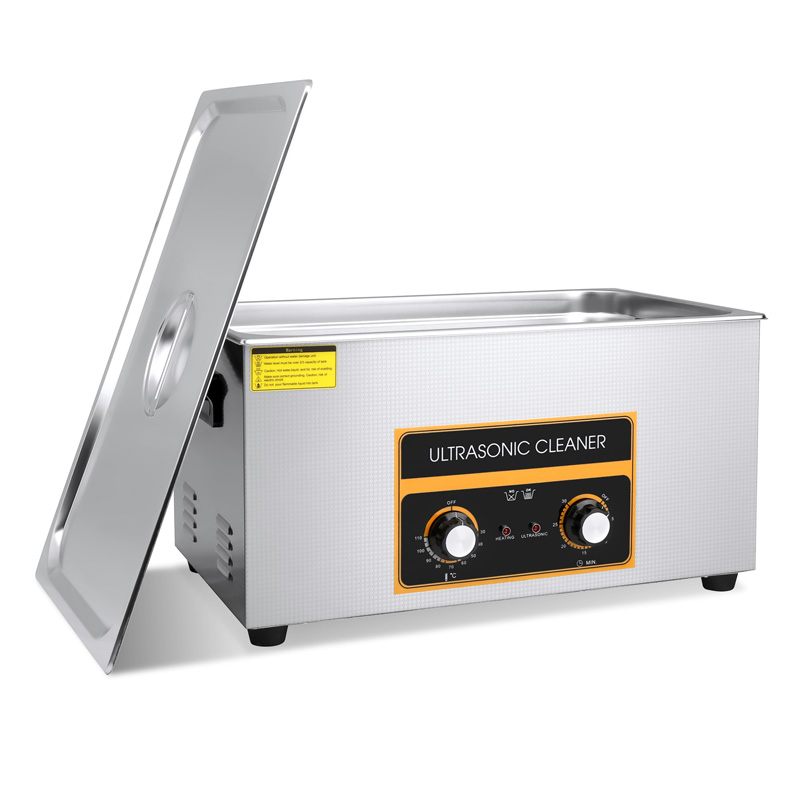

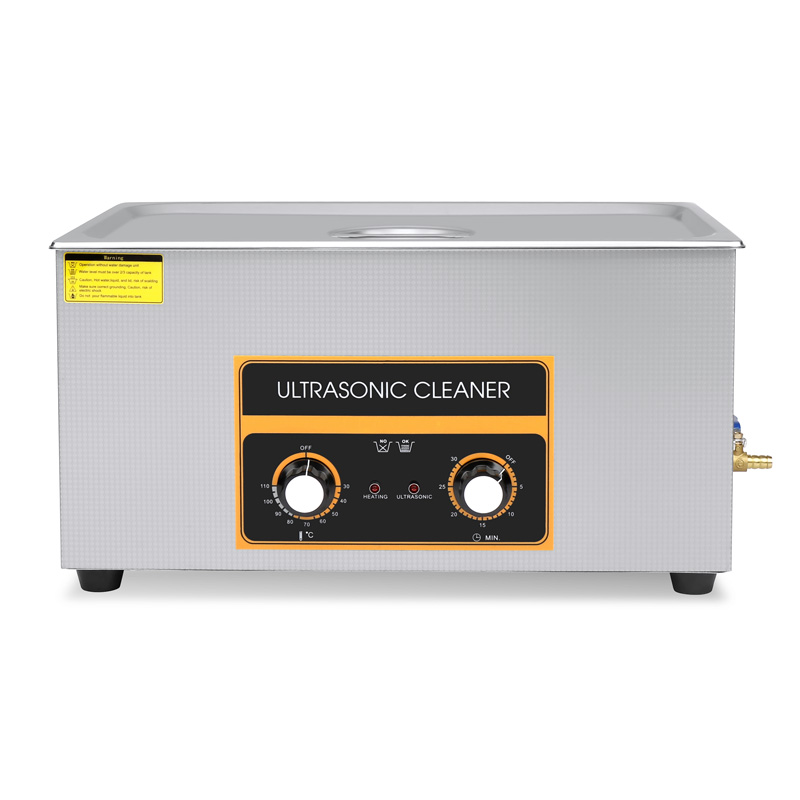

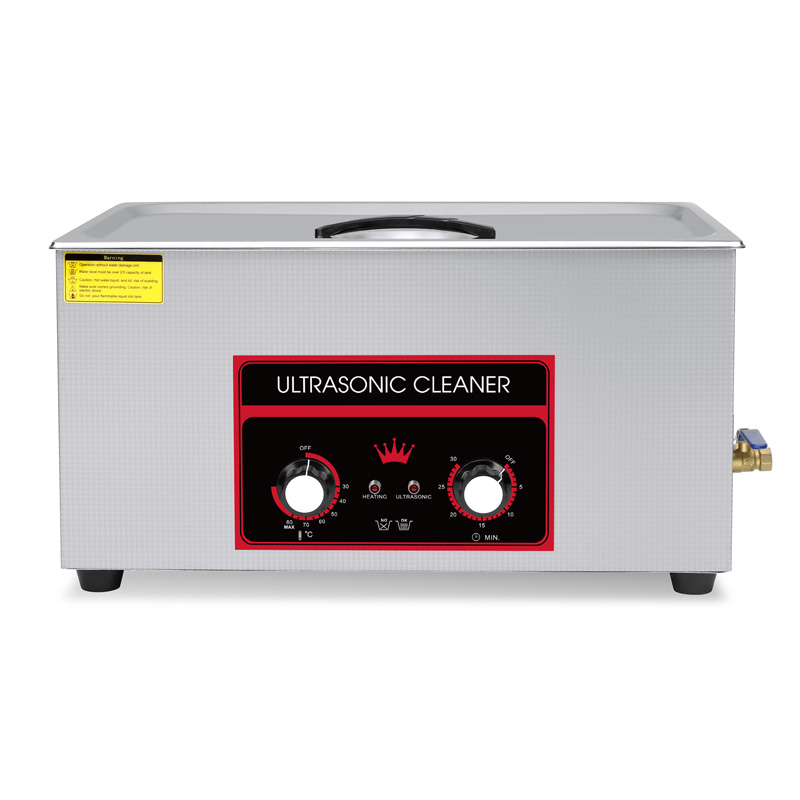

The mechanical control system provides a straightforward operating method for commercial users and maintenance teams.
Operators can adjust:
Cleaning time
Cleaning temperature
Heating operation
Ultrasonic cleaning cycle
Mechanical controls are suitable for buyers who prefer simple operation, easy maintenance and consistent manual adjustment without a complex digital interface.
This type of ultrasonic cleaner is especially suitable for:
Repair workshops
Jewelry cleaning businesses
Machine shops
Industrial maintenance departments
Small production facilities
Equipment distributors
Buyers who need LCD control and more precise digital settings can compare the 10L digital ultrasonic cleaner.
Ultrasonic waves generate cavitation bubbles in the cleaning solution. When the bubbles collapse, they help loosen contaminants from areas that are difficult to reach manually.
The 22L mechanical ultrasonic cleaner can assist with cleaning:
Blind holes
Threads
Grooves
Recessed surfaces
Internal cavities
Small gaps
Complex machined structures
Ultrasonic cleaning can reduce manual brushing and help improve cleaning consistency across repeated batches.
The final result depends on the workpiece material, contaminant type, cleaning solution, temperature, ultrasonic frequency and cleaning time.
Heating can improve the removal of oily and greasy contaminants from compatible metal parts, tools and components.
The heating function is suitable for cleaning:
Cutting oil
Lubricating grease
Wax
Polishing compounds
Carbon residues
Industrial dust
Mechanical deposits
The thermostat helps maintain the selected bath temperature during operation. Temperature should be selected according to the workpiece material, coating and cleaning solution.
Do not use flammable or unsuitable liquids unless the equipment has been specifically designed and certified for that application.
The cleaning tank is manufactured from SUS 304 stainless steel for regular commercial and industrial use.
The stainless steel construction provides:
Resistance to corrosion
Improved resistance to heat deformation
Easy cleaning and maintenance
Durable tank structure
Reduced leakage risk
Compatibility with suitable water-based cleaning solutions

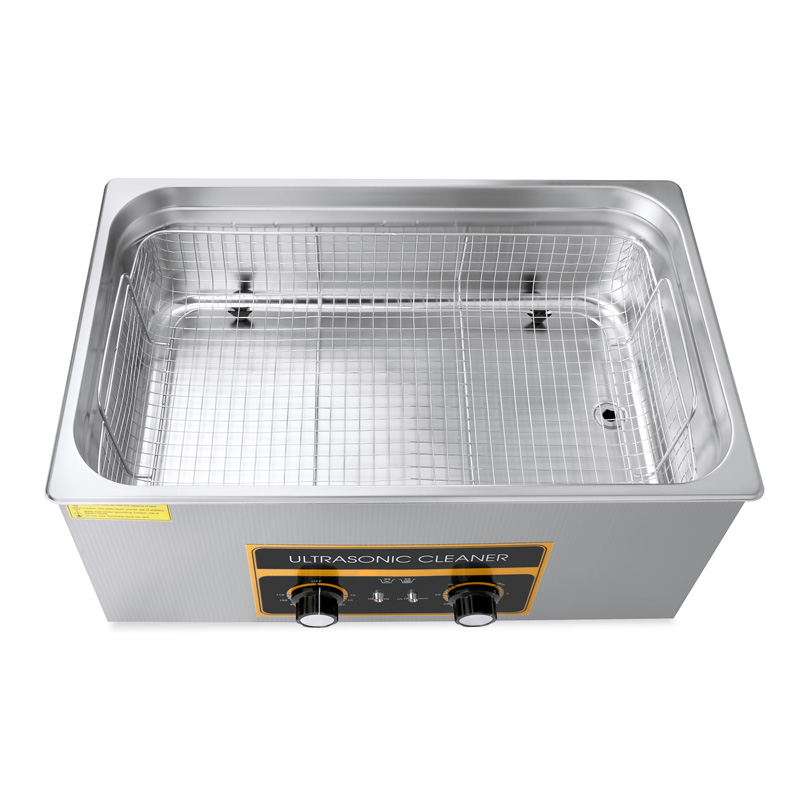

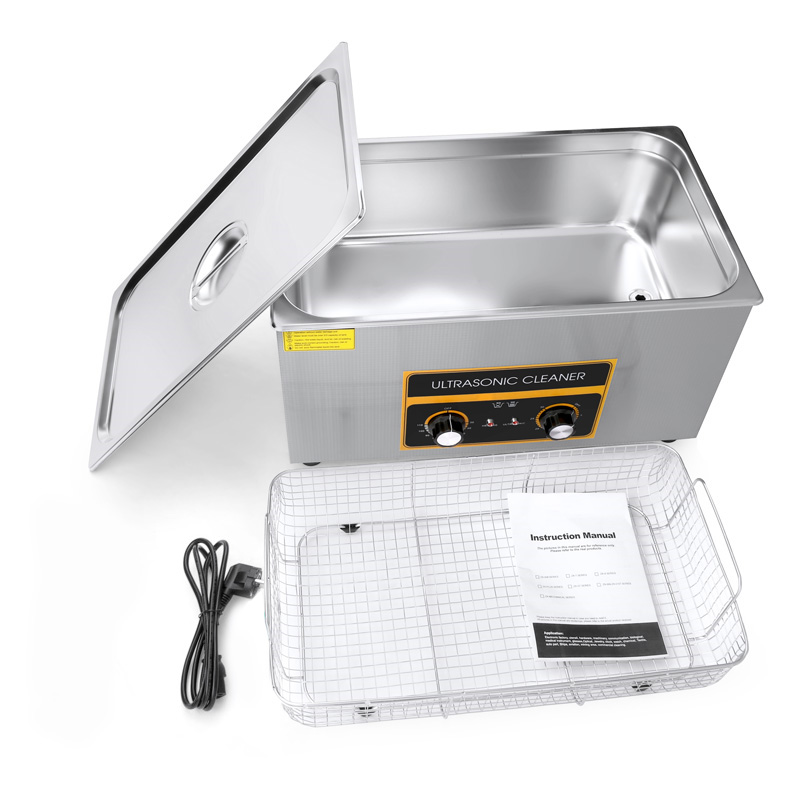

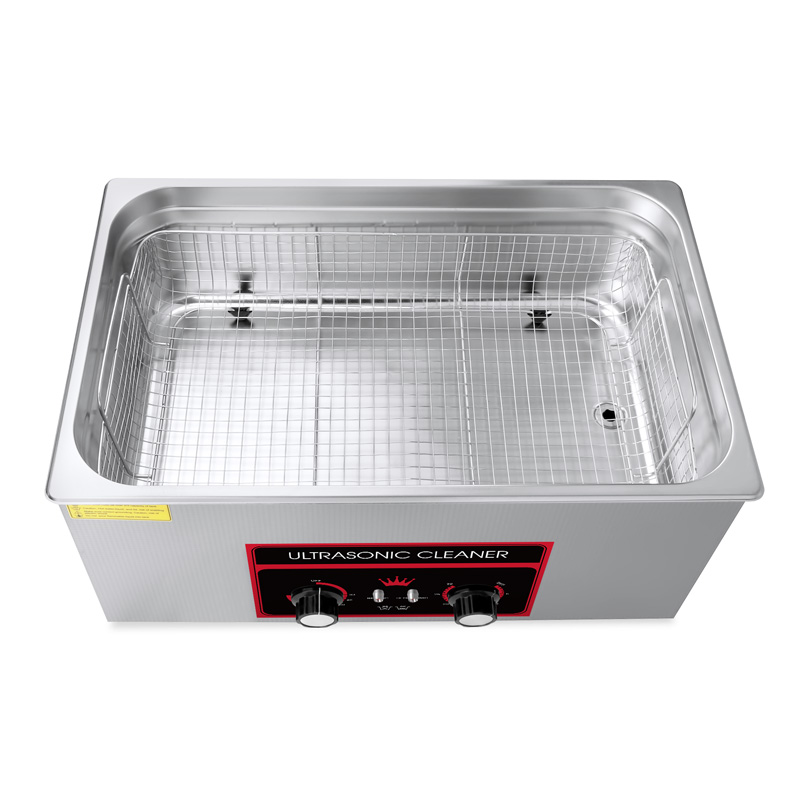

The protective basket helps hold the parts above the tank bottom and improves solution circulation around the workpiece.

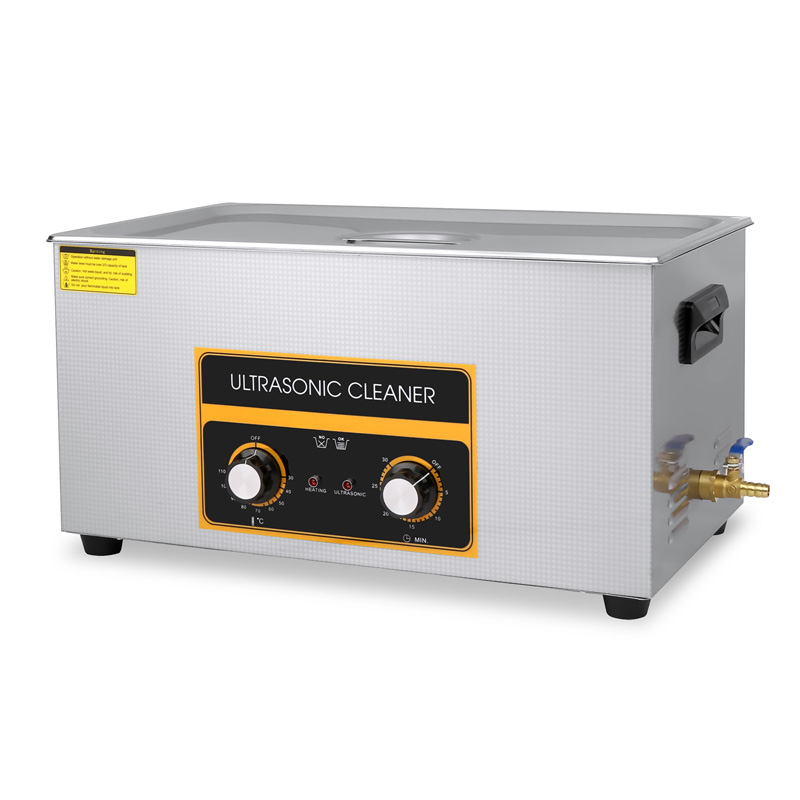

The quick-drain valve also makes it easier to empty and replace the cleaning solution during regular maintenance.
The large tank provides sufficient space for cleaning compatible CNC-machined parts, metal components and tooling accessories.
Ultrasonic cavitation can help remove machining oil, cutting fluid, dust and fine residues from grooves and recessed areas.
The machine is suitable for cleaning selected machinery components, fittings, valves, tools and maintenance parts.
For larger parts or higher-volume production, Redcrown can also provide customized industrial ultrasonic cleaning systems.
Jewelry workshops and repair chains can use the 22L tank for batch cleaning of metal components, tools, accessories and production parts.
The operating temperature and cleaning solution should be adjusted according to the jewelry material and surface finish.
The ultrasonic cleaner can assist with cleaning suitable tools, fixtures and compatible electronic manufacturing components.
Sensitive electronic components should be tested before full-scale cleaning, as not all electronic parts are suitable for ultrasonic cleaning.
The machine can support the pre-cleaning of suitable dental laboratory tools and instruments before further disinfection or sterilization.
Ultrasonic cleaning does not replace a validated sterilization process.
The machine is suitable for workshop tools, fittings, small assemblies, metal parts and maintenance components that require deeper cleaning than manual washing can provide.
To obtain suitable cleaning results, buyers should consider the following factors:
Confirm the largest workpiece dimensions before ordering. The part must fit inside the cleaning basket and be fully immersed.
The 22L capacity is suitable for larger components or multiple small parts cleaned in one batch.
Different contaminants may require different cleaning solutions, temperatures and cleaning times.
Check the compatibility of the ultrasonic process with the workpiece material, coating, adhesive and surface finish.
40kHz is suitable for many general-purpose cleaning applications. Other frequency configurations may be considered for specialized cleaning requirements.
Heating is useful for oil, grease, wax and polishing residues, but the temperature must remain suitable for the workpiece and cleaning solution.
Redcrown provides ultrasonic cleaning equipment for commercial, industrial, laboratory and customized applications.
Key advantages include:
Ultrasonic cleaner manufacturing experience since 2007
Commercial, laboratory and industrial equipment options
More than 100 patents
Customers in more than 100 countries
OEM and ODM support
Private label and custom packaging
Customized voltage and plug configurations
Manual, digital and automatic control options
Technical support for model selection
Export packaging and documentation support
After-sales service for international buyers
For wholesale and OEM projects, Redcrown can recommend a suitable capacity, control system and configuration according to the workpiece size, contamination type, cleaning volume and destination market.
A 22L mechanical ultrasonic cleaner is used to clean CNC parts, machinery components, tools, jewelry parts, dental laboratory tools, fittings and other compatible commercial or industrial components.
The 22L tank provides more working space for larger parts or batch cleaning than compact ultrasonic cleaners. It is suitable for workshops, industrial maintenance departments and professional cleaning businesses.
The tank size is 500 × 300 × 150 mm, and the overall machine size is 530 × 330 × 280 mm.
Yes. The machine includes a heating function with temperature settings from approximately 20°C to 80°C, subject to the final product specification.
Yes. The mechanical timer can be adjusted for cleaning cycles of up to 30 minutes.
This model uses mechanical dial controls for adjusting the cleaning time and temperature.
Yes. It is suitable for cleaning compatible CNC parts, metal components, tools and machinery parts contaminated with oil, grease, dust and machining residues.
Yes. The machine can be used for compatible jewelry parts and workshop cleaning. The cleaning solution and temperature should be selected according to the jewelry material and surface finish.
No. It can assist with pre-cleaning, but ultrasonic cleaning does not replace disinfection or sterilization.
The machine is designed for repeated commercial and workshop use. The recommended duty cycle should be confirmed according to the final configuration and operating environment.
Yes. Redcrown supports OEM, ODM and private label projects, including customized packaging, logo printing, voltage, plug and product configurations.
Looking for a large-capacity mechanical ultrasonic cleaner for commercial or industrial parts cleaning?
Please provide:
Part type and material
Largest workpiece dimensions
Contamination type
Required cleaning volume
Preferred tank capacity
Destination country
Voltage and plug requirements
Expected order quantity
Redcrown can provide a suitable model recommendation, technical specifications, OEM support and a quotation according to your requirements.
