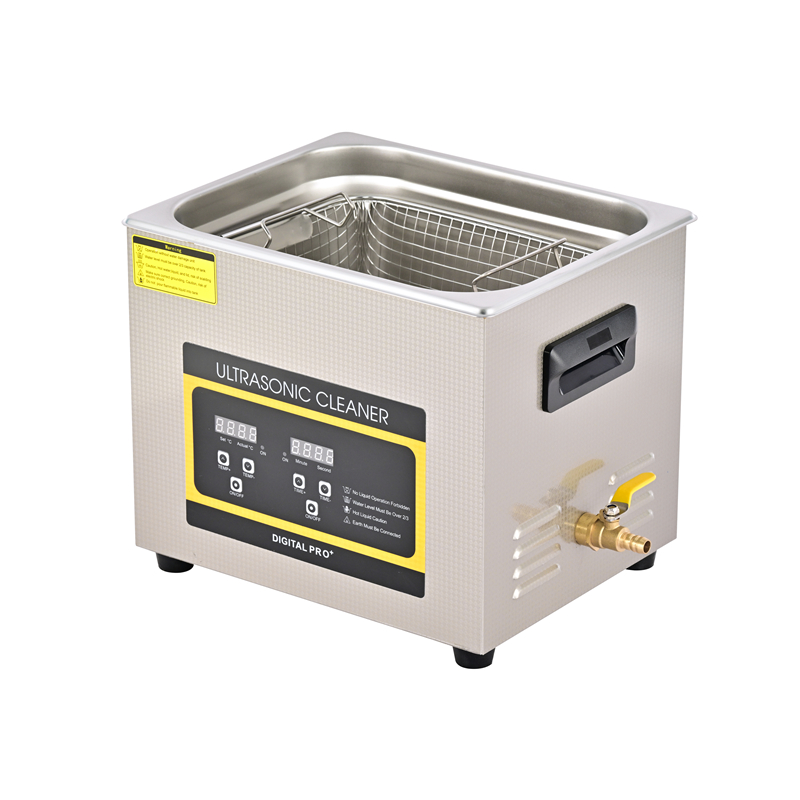

10L Advanced Digital Ultrasonic Cleaner with Programmable Timer & Heater

Model NO.: ZX-040S

10L Advanced Digital Ultrasonic Cleaner with Programmable Timer & Heater

◼️ 10L Ultrasonic Cleaner with Heater

◼️ 304 stainless steel tank | 40KHz, 180W ultrasound

◼️ 200W digital heating (0-80°C) | Timer + degas function

◼️ Fuse protection | CE-certified

◼️ Ideal For jewelry shops, dental labs, workshops. Cleans PCBs, tools, nozzles, etc.

Inquire Now

Product Feature

• Advanced 304 Stainless Steel Construction:

Featuring medical-grade 304 stainless steel, this corrosion-resistant ultrasonic cleaner tank delivers exceptional durability for industrial and precision cleaning applications. The seamless welded structure eliminates leakage risks while withstanding chemical corrosion and abrasive wear.

• Precision 40KHz Ultrasonic Technology:

Engineered with military-standard 40kHz transducers, this professional-grade cleaner generates intense 180W cavitation energy. Millions of micron-sized bubbles penetrate microscopic crevices, effectively removing industrial coatings, hardened resins, and oxidation layers without surface abrasion.

• Smart Dual-Control System:

Customize cleaning protocols via the microprocessor-controlled interface with 0-30min digital timer and 0-80℃ precision heating (200W thermal output). The synchronized ultrasonic/thermal operation enhances solvent activation while integrated degas function protects sensitive components from oxidative damage.

• Industrial-Grade Performance Specifications:

Frequency stability: ±1% @40kHz

Dual power output: 180W ultrasonic + 200W thermal

Safety-rated thermal cutoff protection

Reinforced drainage system with emergency fuse

• Professional-Scale 10L Workstation:

The industrial-capacity tank accommodates bulk cleaning of mechanical parts, dental instruments, and PCB assemblies. Included anti-abrasion basket organizes small components while protective side vents maintain optimal thermal management during extended operations.

Model
	JP-008	JP-009	JP-010	JP-020E	JP-030	JP-031	JP-040	JP-060	JP-080	JP-100	JP-120
Capacity	0.8L/0.19	1.3L/0.31	2L/0.53gal	3.2L/0.85gal	4.5L/1.19gal	6.5L/1.72gal	10L/2.64gal	15L/3.96gal	22L/5.81gal	30L/7.93gal	38L /9.12
Tank size(mm)	1508565	15013565	150135100	240135100	300150100	300150150	300240150	330300150	500300150	500300200	500300250
Overall size(mm)	178110130	172162165	175160210	270165230	330175235	330175275	330270275	360325280	530330280	530330333	595345385
Frequency	40kHz	40kHz	40kHz	40kHz	40kHz	40kHz	40kHz	40kHz	40kHz	40kHz	40kHz
Ultrasonic power	35W	60W	60W	180W	180W	180W	240W	360W	480W	600W	720W
Heating power	NA	100W	100W	100W	200W	200W	200W	300W	500W	500W	800W
Timer	0-30min	0-30min	0-30min	0-30min	0-30min	0-30min	0-30min	0-30min	0-30min	0-30min	0-30min
Temp setting	20-80°C	20-80°C	20-80°C	20-80°C	20-80°C	20-80°C	20-80°C	20-80°C	20-80°C	20-80°C	20-80°C
Master carton	12pcs	8pcs	8PCS	1PCS	1PCS	1PCS	1PCS	1PCS	1PCS	1PCS	1PCS

Mechanical Ultrasonic Cleaner

Our Knowledgeable Team is Here to Help

1. Industrial Cleaning; 2. Laboratory Cleaning and General Equipment; 3. Gene Transduction; 4. High-Throughput Screening; 5. Fermentation Optimization; 6. Sample Pretreatment; 7. Separation and Purification; 8. Sample Preparation

Customize Now

Solution In Different Industrial Application

Redcrown's Ultrasonic technology provides companies with related instruments and equipment for biomedicine, medical care, IVD, biosafety, food safety, disease prevention and control, inspection and quarantine, environmental protection, industrial cleaning and new materials research. We provide intelligent instruments and equipment and services related to life sciences to worldwide universities and research institutions.

Laboratory Ultrasonic Machine

The laboratory ultrasonic machine can be used for very wide application in science research field. Included sample pretreatment, ultrasonic water bath, ultrasonic oscillation,emulsification, mixing, extraction, dispersion, elimination, degassing, cell crushing catalytic reaction, and assistance functions such as dissolution,acceleration of chemical reactions, viscosity reduction of adhesive liquids, semiconductor silicon wafers, new materials and energy, scraper extraction, Hypersonic magnetic materials and other applications.

Mechanical Hardware Industry

The Mechanical Hardware Industry involves the manufacture, processing and sale of various mechanical parts. These parts are widely used in many fields such as construction, automobiles, electronics, and machinery manufacturing. The cleaning process is an important part of the mechanical hardware industry, which ensures that the parts meet the required cleaning standards before subsequent processing, assembly or use.

Medical Ultrasonic Clean Machine

Faced with the challenges posed by the most stringent standards in the medical industry, ultrasonic cleaning technology effortlessly rises to the task of cleaning during processing or reprocessing. The high-frequency vibrations generated by ultrasonic waves efficiently remove contaminants and microorganisms from instrument surfaces, ensuring medical devices meet cleanliness requirements that comply with industry regulations.

The Application of Ultrasonic Technology in Biological Research Experiments

Our products provide a range of equipment and solutions in the field of synthetic biology. From strain design, high-throughput screening (specimen processing, dynamic analysis) during the R&D phase to fermentation optimization, as well as pre-treatment for separation/purification and lyophilization preservation in the production phase. Through relevant supporting equipment, we help clients delve into the mysteries of synthetic biology and advance the development and application of synthetic biology.

Environmental Protection

Redcrown provides a variety of advanced instruments and solutions in the field of environmental protection. These equipment are widely used in environmental monitoring, pollution control, resource recovery and ecological restoration. Freeze dryer is used for soil sample drying. Ultrasonic cleaning is used for solvent treatment. Microbial growth curve analyzer is used for water pollution microbial degradation assessment. Ultrasonic cleaning is used for experimental cleanliness, etc.

In Vitro Diagnosis

In Vitro Diagnostics (IVD) refers to the analysis of human samples (e.g., blood, urine, tissues, cells) outside the body to obtain critical health information, including disease diagnosis, treatment monitoring, and prognostic evaluation. IVD technologies play a pivotal role in modern medicine, enabling early disease detection, guiding therapeutic decision-making, and assessing treatment efficacy. Redcrown provides advanced instruments and tailored solutions for the IVD sector, with applications spanning clinical testing, disease diagnostics, and scientific research.
