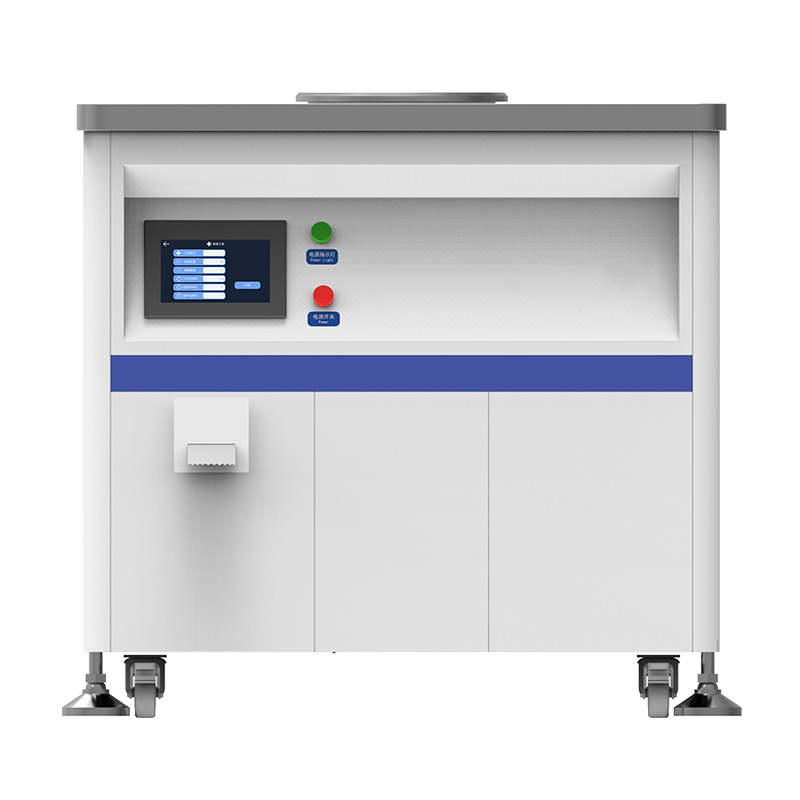

SNY-LZ Vacuum Medical Ultrasonic Cleaning Machine

The vacuum medical ultrasonic cleaning device adopts the most advanced digital circuits and integrated circuits internationally. The product features novel structure, advanced circuits, reliable operation, high efficiency, low noise, and high cleanliness, and is widely used in Medical institutions operating rooms, laboratories, testing rooms, supply rooms, dental clinics, disinfection centers and other departments of medical institutions such as hospitals. It is equipped with fully effective multi enzyme cleaning agents, lubricants, pure water, etc .Special medical cleaning agents are suitable for cleaning various medical surgical instruments, scissors, tweezers, dressing bowls, beakers, bottles and other medical equipment。

Inquire Now Next Product

Product Feature

Thickened inner liner	High strength SUS304 stainless steel, thick and corrosion-resistant, can withstand vacuum pressure of 100Kpa;
Power outage protection	Automatic memory of working parameters with automatic protection function;
Flexible parameters	Time and power can be flexibly set;
Heating function	Using PID algorithm module, precise control of heating, heating temperature can reach 90℃;
LCD screen	Inch color touch screen, real-time display of cleaning process data;
Ultrasonic system	Imported medical grade transducer, precise and durable, 360º all-round cleaning, multifunctional medical equipment cleaning;
Safety protection	Automatic temperature detection, grounding, voltage ,current protection, etc;
Precise temperature control	High precision heater with PID algorithm, temperature difference control within ± 2 ℃;
Reduced pressure degassing	Using a reduced pressure vacuum pump to remove bubbles and improve cleaning efficiency;
Intelligent storage	Supports 20 groups operation program data storage;
Visual electronic control panel	Transparent window, observation of cleaning conditions, multiple control modes, flexible and easy to use;
Flexible anti-pinch	The electric control door adopts a flexible soft structure, which can prevent the flip cover from applying additional clamping force in case of misoperation;
Electric control drainage	Electric control inlet and outlet ball valve, convenient and easy operation;
Automatic liquid addition	Built in multiple liquid circuit systems, programs can be set according to requirements;
One-click fully automatic cleaning	Multi process automatic cleaning, sound and light alarm reminder;
Data printing	Real time printing of work data for easy viewing;
Data storage	Long term record cleaning data for easy traceability.

Model	Capacity	Frequency	Inner tank size	Ultrasonic Power	Open lip mode	Inlet	Outlet	Operation	heating power	Vacuum
SNY-LZ90	90L	40KHz	650400350mm	1500W	electric	6'	10'	PLC	12KW	-85kpa
SNY-LZ110	110L	40KHz	680430380mm	1800W	electric	10'	10'	PLC	15KW	-85kpa
SNY-LZ130	130L	40KHz	700450400mm	2400W	electric	10'	10'	PLC	18KW	-85kpa
