Model NO.: SN-Y

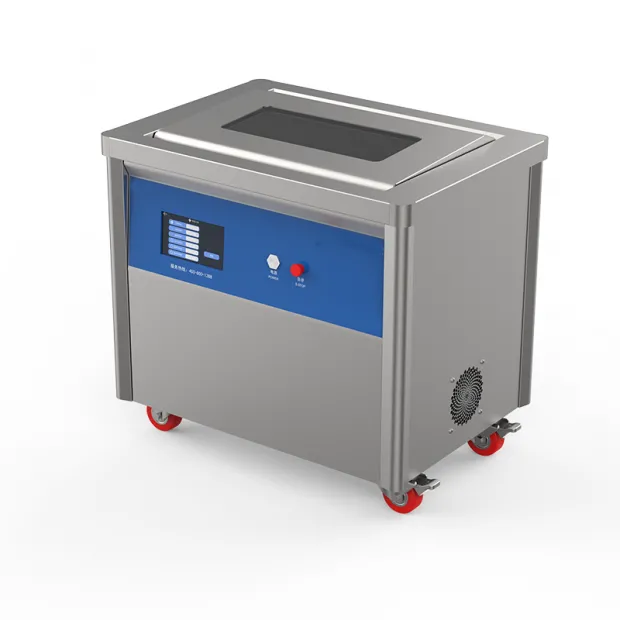

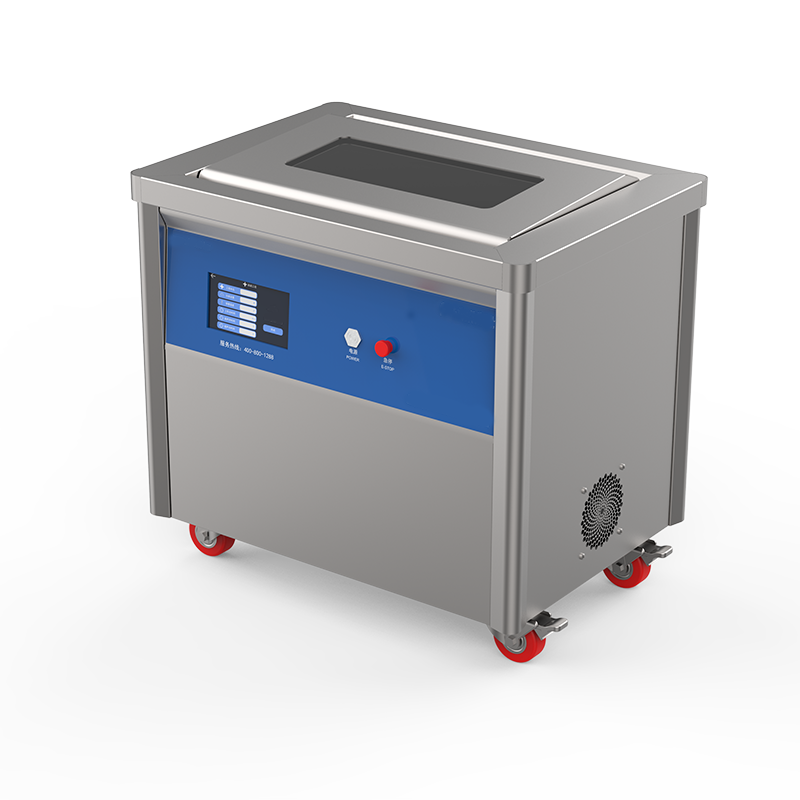

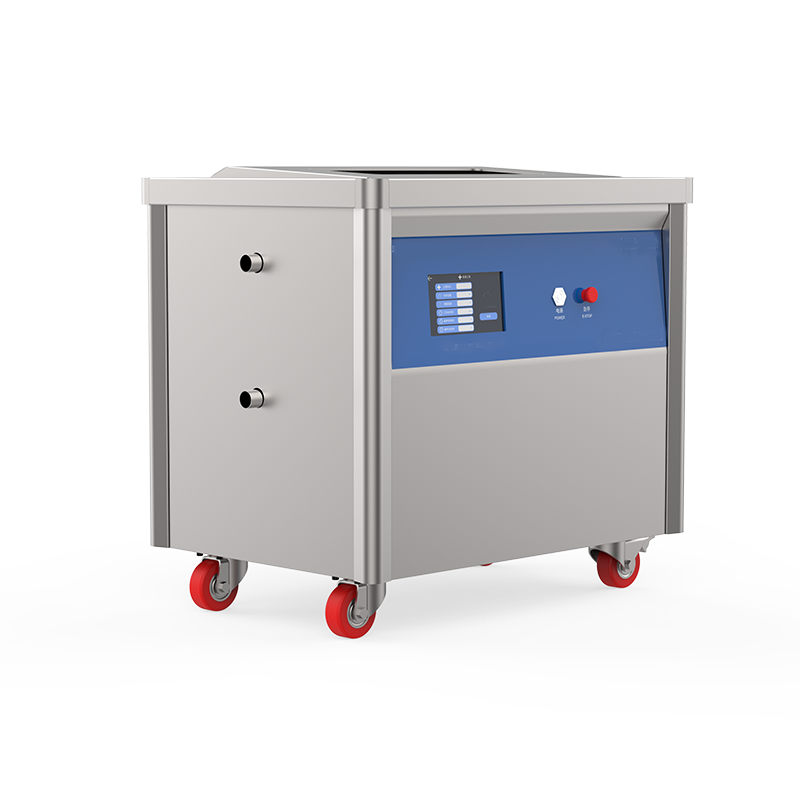

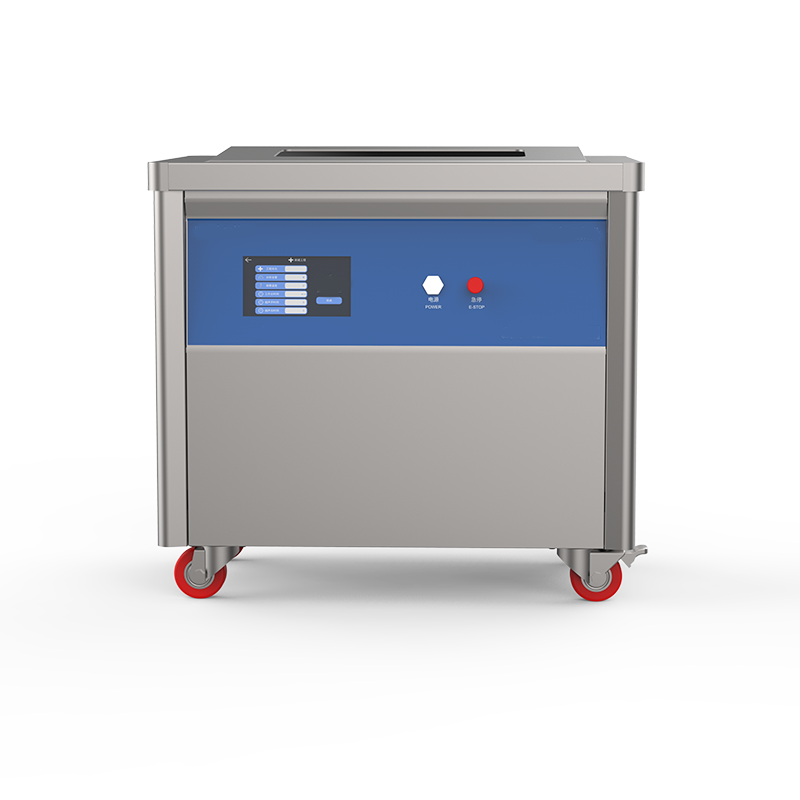

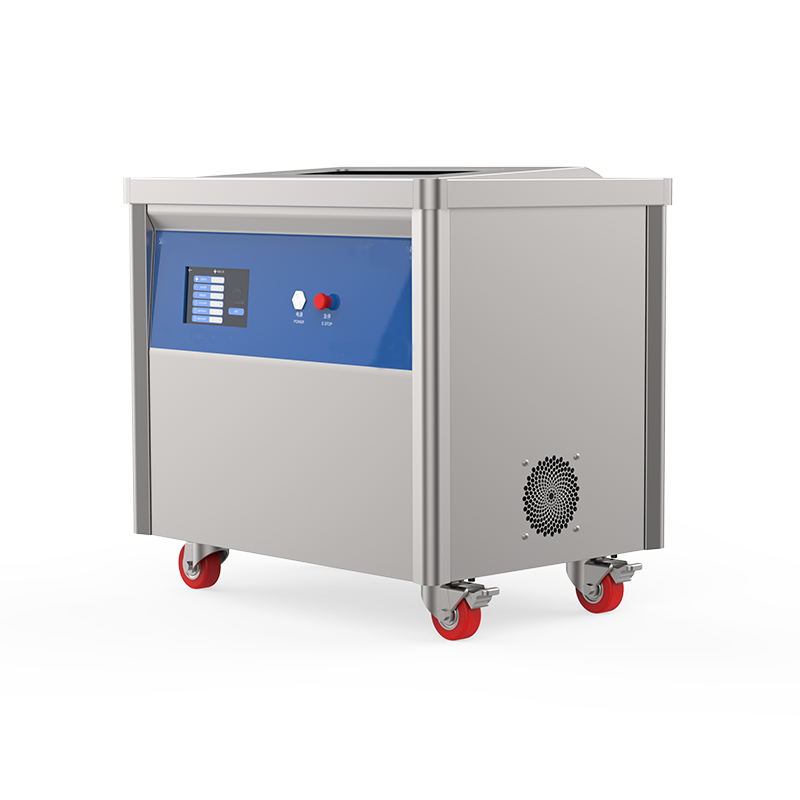

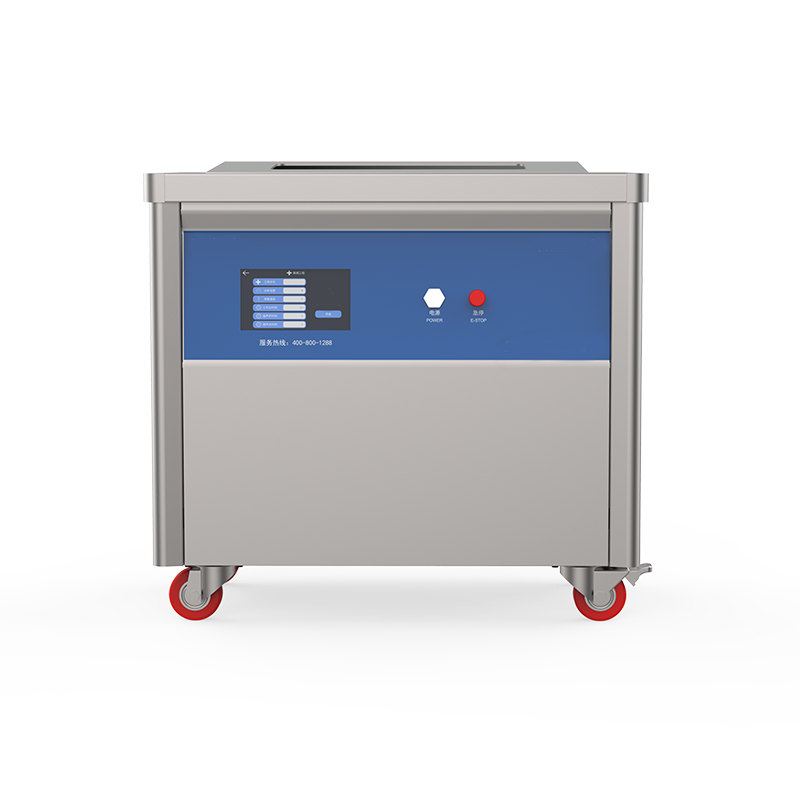

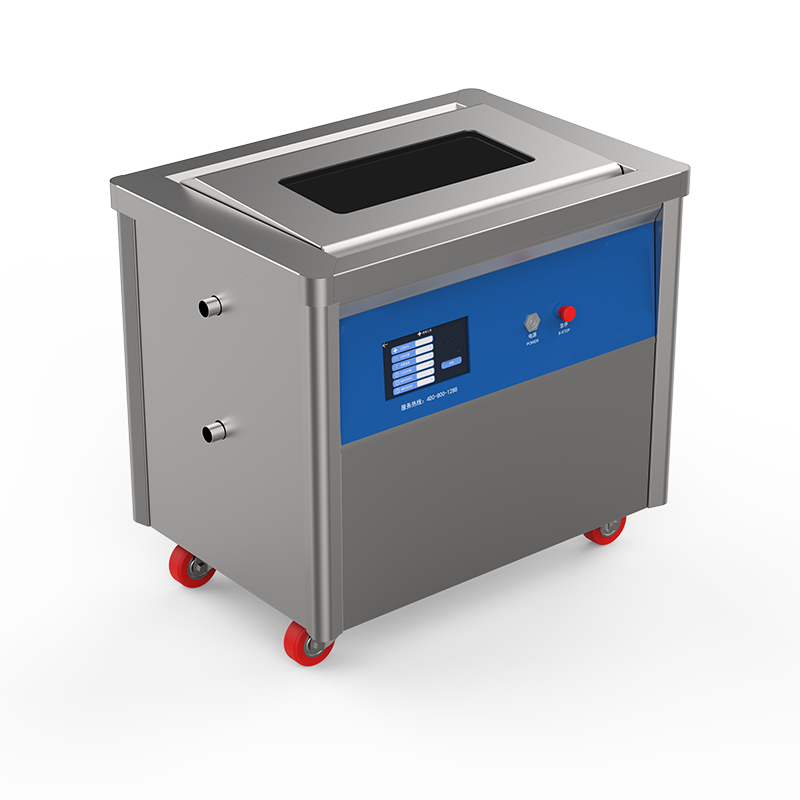

Medical ultrasonic cleaning machines utilize the physical and chemical effects generated by high-frequency ultrasound to effectively clean and disinfect medical equipment and devices. Its working principle is to remove dirt, bacteria, and pollutants through ultrasonic oscillation and solution action, ensuring thorough cleaning of the surface of medical devices.
Product Feature
| Exquisite appearance | Integrated round body, beautiful and easy to clean; |
| Residual free inner liner | Made of SUS304 stainless steel, with no liquid residue and corrosion resistance; |
| Power outage protection | Working parameter memory, automatic protection function; |
| Adjustable time | 1-960 minutes of working time setting, for long-term continuous work; |
| Adjustable power | 0% -100% linear stepless adjustment; |
| Heating function | PID algorithm control, up to 95 ° C; |
| LCD screen | 7-inch intelligent touch screen, clear display, convenient operation; |
| Ultrasonic system | Professional grade shock head, 360 ° all-round wave transmission, precise and durable; |
| Safety protection | Temperature control, grounding, overvoltage, overcurrent, air switch protection; |
| Temperature control protection | High-precision PID control, temperature difference within ± 1 ° C; |
| Pulse degassing | Intermittent frequency modulation pulse work, discharge bubbles, improve ultrasonic cavitation effect; |
| Liquid level monitoring | Contactless monitoring, low liquid level protection, real-time liquid level monitoring; |
| Intelligent storage | 20 sets of operation program data storage; |
| Visual electronic control flip cover | The flip cover has a transparent visual window, an electronic control operation slot cover, can be controlled by touch screen, and can be operated by foot kicking at the bottom; |
| Flexible anti pinch | The electric control door adopts a flexible soft drive structure, which can prevent the flip cover from applying additional clamping force in case of misoperation; |
| Electric control drainage | It adopts a hand electric integrated control of the inlet and outlet ball valves, making it convenient to quickly execute the inlet and outlet, with two modes of execution. |
| Product Model | Inner tank size/volume | Outer cladding material | Inner groove material | Control method | capacity | frequency | Ultrasonic power | Heating power | Time Control | temperature | Voltage | Electric inlet and outlet size | Standard wire | Liquid level dynamic monitoring |
| SN-38Y-40 | 500X300X250 | 201/T0.8 | 304 T2.0 No residue | Touch 7 inches | 38L | 40KHz | 900W | 1.5KW | 0-960min | Normal temperature -95C° | 220V single phase | 6 points | 1.5 m | have |
| SN-53Y-40 | 500X350X300 | 201/T0.8 | 304 T2.0 No residue | Touch 7 inches | 53L | 40KHz | 1500W | 1.5KW | 0-960min | Normal temperature -95C° | 220V single phase | 6 points | 1.5 m | have |
| SN-77Y-40 | 550X400X350 | 201/T0.8 | 304 T2.0 No residue | Touch 7 inches | 77L | 40KHz | 1800W | 3KW | 0-960min | Normal temperature -95C° | 220V single phase | 6 points | 1.5 m | have |
| SN-99Y-40 | 550X450X400 | 201/T0.8 | 304 T2.0 No residue | Touch 7 inches | 99L | 40KHz | 2400W | 3KW | 0-960min | Normal temperature -95C° | 220V single phase | 6 points, 1 inch | 1.5 m | have |
| SN-96Y-40 | 800X300X400 | 201/T0.8 | 304 T2.0 No residue | Touch 7 inches | 96L | 40KHz | 2400W | 3kw | 0-960min | Normal temperature -95C° | 220V single phase | 6 points, 1 inch | 1.5 m | have |
| SN-135Y-40 | 600X500X450 | 201/T0.8 | 304 T2.0 No residue | Touch 7 inches | 135L | 40KHz | 3000W | 4.5KW | 0-960min | Normal temperature -95C° | 380V three-phase | 6 points, 1 inch | 3 meters | have |
| SN-175Y-40 | 700X500X500 | 201/T0.8 | 304 T2.0 No residue | Touch 7 inches | 175L | 40KHz | 3600W | 6KW | 0-960min | Normal temperature -95C° | 380V three-phase | 6 points, 1 inch | 3 meters | have |
| SN-264Y-40 | 800X600X550 | 201/T0.8 | 304 T2.0 splicing welding | Touch 7 inches | 264L | 40KHz | 4500W | 6KW | 0-960min | Normal temperature -95C° | 380V three-phase | 6 points, 1 inch | 3 meters | have |
| SN-360Y-40 | 1000X600X600 | 201/T0.8 | 305 T2.0 splicing welding | Touch 7 inches | 360L | 40KHz | 5400W | 9KW | 0-960min | Normal temperature -95C° | 380V three-phase | 6 points, 1 inch | 3 meters | have |
| SN-540Y-40 | 1000X900X600 | 201/T0.8 | 306 T2.0 splicing welding | Touch 7 inches | 540L | 40KHz | 7500W | 18KW | 0-960min | Normal temperature -95C° | 380V three-phase | 1 1/4" | 3 meters | have |
| SN-960Y-40 | 1200X1000X800 | 201/T0.8 | 307 T2.0 splicing welding | Touch 7 inches | 960L | 40KHz | 10800W | 24KW | 0-960min | Normal temperature -95C° | 380V three-phase | 1 1/2" | 3 meters | have |
Our Knowledgeable Team is Here to Help
1. Industrial Cleaning; 2. Laboratory Cleaning and General Equipment; 3. Gene Transduction; 4. High-Throughput Screening; 5. Fermentation Optimization; 6. Sample Pretreatment; 7. Separation and Purification; 8. Sample Preparation
Customize NowSolution In Different Industrial Application
The laboratory ultrasonic machine can be used for very wide application in science research field. Included sample pretreatment, ultrasonic water bath, ultrasonic oscillation,emulsification, mixing, extraction, dispersion, elimination, degassing, cell crushing catalytic reaction, and assistance functions such as dissolution,acceleration of chemical reactions, viscosity reduction of adhesive liquids, semiconductor silicon wafers, new materials and energy, scraper extraction, Hypersonic magnetic materials and other applications.
The Mechanical Hardware Industry involves the manufacture, processing and sale of various mechanical parts. These parts are widely used in many fields such as construction, automobiles, electronics, and machinery manufacturing. The cleaning process is an important part of the mechanical hardware industry, which ensures that the parts meet the required cleaning standards before subsequent processing, assembly or use.
Medical Ultrasonic Clean Machine
Faced with the challenges posed by the most stringent standards in the medical industry, ultrasonic cleaning technology effortlessly rises to the task of cleaning during processing or reprocessing. The high-frequency vibrations generated by ultrasonic waves efficiently remove contaminants and microorganisms from instrument surfaces, ensuring medical devices meet cleanliness requirements that comply with industry regulations.
The Application of Ultrasonic Technology in Biological Research Experiments
Our products provide a range of equipment and solutions in the field of synthetic biology. From strain design, high-throughput screening (specimen processing, dynamic analysis) during the R&D phase to fermentation optimization, as well as pre-treatment for separation/purification and lyophilization preservation in the production phase. Through relevant supporting equipment, we help clients delve into the mysteries of synthetic biology and advance the development and application of synthetic biology.
Redcrown provides a variety of advanced instruments and solutions in the field of environmental protection. These equipment are widely used in environmental monitoring, pollution control, resource recovery and ecological restoration. Freeze dryer is used for soil sample drying. Ultrasonic cleaning is used for solvent treatment. Microbial growth curve analyzer is used for water pollution microbial degradation assessment. Ultrasonic cleaning is used for experimental cleanliness, etc.
In Vitro Diagnostics (IVD) refers to the analysis of human samples (e.g., blood, urine, tissues, cells) outside the body to obtain critical health information, including disease diagnosis, treatment monitoring, and prognostic evaluation. IVD technologies play a pivotal role in modern medicine, enabling early disease detection, guiding therapeutic decision-making, and assessing treatment efficacy. Redcrown provides advanced instruments and tailored solutions for the IVD sector, with applications spanning clinical testing, disease diagnostics, and scientific research.
