Home > Products>Laboratory Ultrasonic Cleaner>Touch Screen Non-contact Ultrasonic Breaker

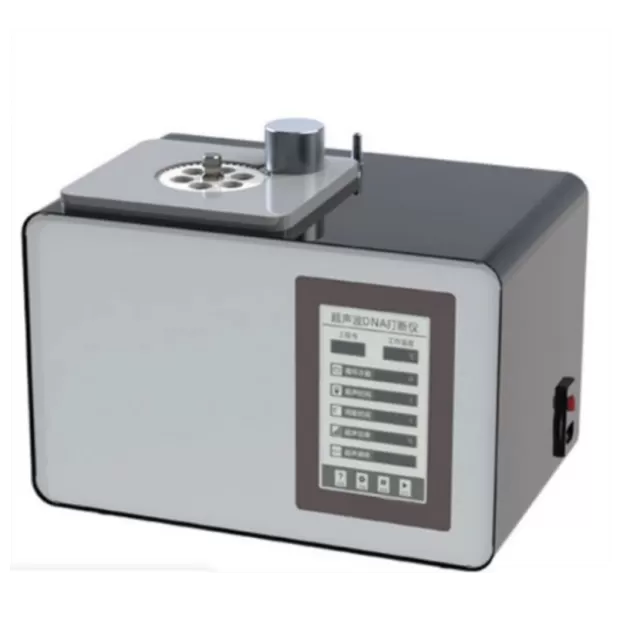

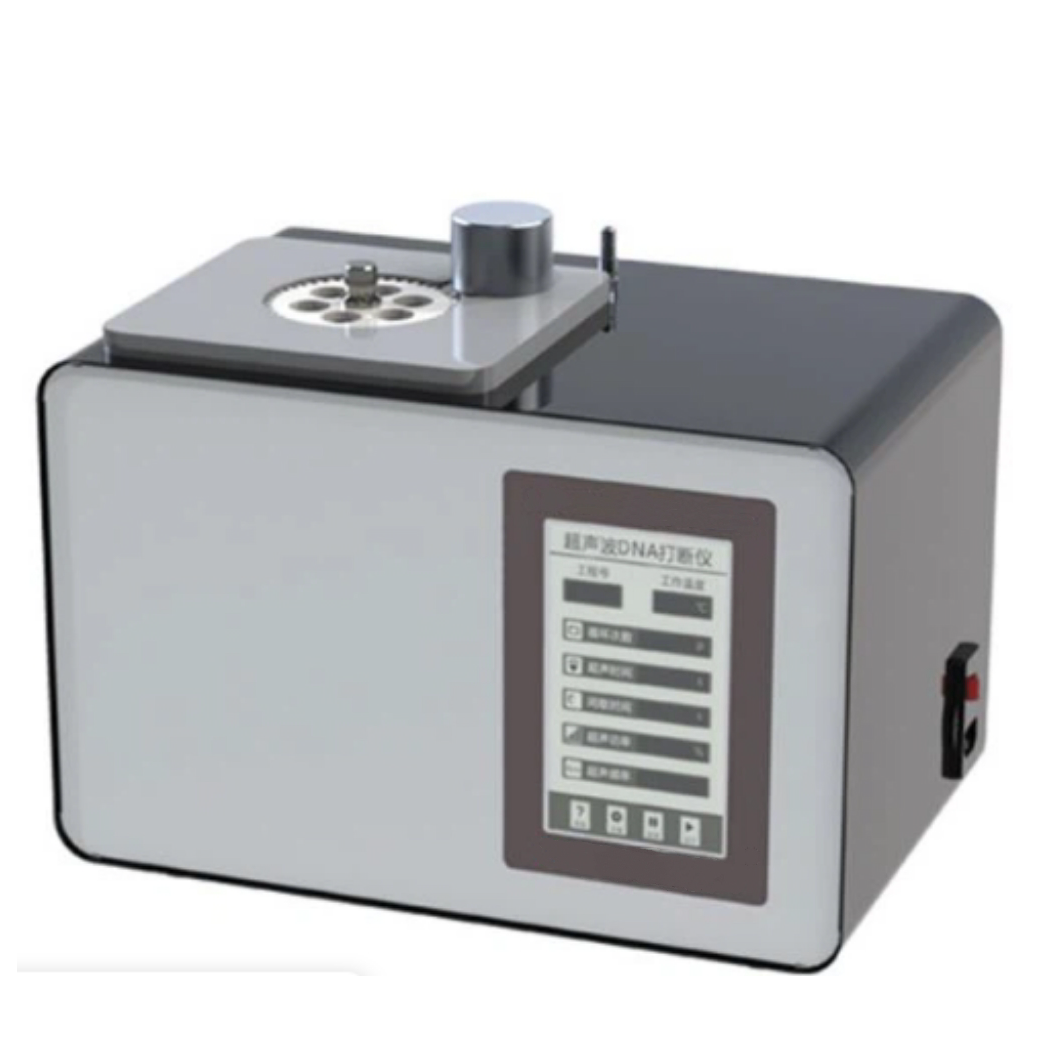

Touch Screen Non-contact Ultrasonic Breaker

This non-contact automatic ultrasonic shredder is also called DNA and chromatin shearing system. It uses closed-tube ultrasound to prevent bubbles, and the protein is not easily denatured. It does not produce infectious fog, ensuring laboratory personnel and environmental safety. DNA shearing instrument .The DNA fragment can be fragmented to an exact desired size, such as: ChIP assay: 300~500bp, high-throughput sequencer: 150~250bp, high DNA fragment concentration.

Suitable for a variety of water soluble and organic solvents.

Inquire Now Next Product

Product Parameters

Core Parameters

Processing Method

Non-contact ultrasonic disruption (closed-tube design)

Frequency range: 20-40 kHz (adjustable)

DNA/Chromatin Shearing Range

Fragment size control: 150 bp ~ 5 kb (precisely adjustable)

Typical application sizes:

ChIP assays: 300-500 bp

High-throughput sequencing (NGS): 150-250 bp

Sample Compatibility

Compatible solvents: Aqueous solutions, buffers (e.g., PBS), organic solvents (e.g., TRIzol)

Sample volume: 50 μL ~ 2 mL

Safety & Protection

Zero aerosol contamination (fully enclosed operation)

Temperature control (prevents protein denaturation due to overheating)

Throughput

Samples per run: 1-12 tubes (optional adapters available)

Processing time: 30 seconds ~ 10 minutes (adjustable based on sample type)

Touch-Screen System

Display: 7-inch color touch screen

Program storage: Supports multiple preset protocols (e.g., ChIP-seq, NGS library preparation)

DNA Fragmentation for NGS

Library preparation for Illumina, PacBio, and Nanopore sequencing

Optimal shearing of genomic DNA to 150-500 bp fragments

Metagenomics Studies

Microbial community DNA processing from environmental samples

2. Epigenetics & Chromatin Analysis

ChIP-seq (Chromatin Immunoprecipitation Sequencing)

Precise chromatin shearing to 300-500 bp for antibody recognition

ATAC-seq (Assay for Transposase-Accessible Chromatin)

Nuclear preparation and chromatin fragmentation

3. Clinical Diagnostics

Non-Invasive Prenatal Testing (NIPT)

Cell-free DNA fragmentation from plasma samples

Oncology Research

Circulating tumor DNA (ctDNA) processing for liquid biopsies

4. Protein Research

Cell Lysis & Protein Extraction

Gentle disruption of cells/organelles while preserving protein integrity

Exosome Isolation

Breaking down extracellular vesicles for cargo analysis

5. Virology & Microbiology

Viral Genome Extraction

Efficient lysis of viral capsids (e.g., SARS-CoV-2, HIV)

Microbial DNA Isolation

Homogenization of Gram-positive/negative bacteria

6. Agricultural Biotechnology

Crop Genomics

DNA shearing for GMO detection and crop improvement studies

Soil Microbiome Analysis

Processing hard-to-lyse environmental samples

Key Advantages for These Applications

Precision: Reproducible fragment sizes (CV < 5%)

Safety: Closed-tube design prevents biohazard exposure

Speed: 12 samples processed in ≤5 minutes

Versatility: Compatible with tissues, cells, bacteria, and viscous samples
