Model NO.: SN-PS

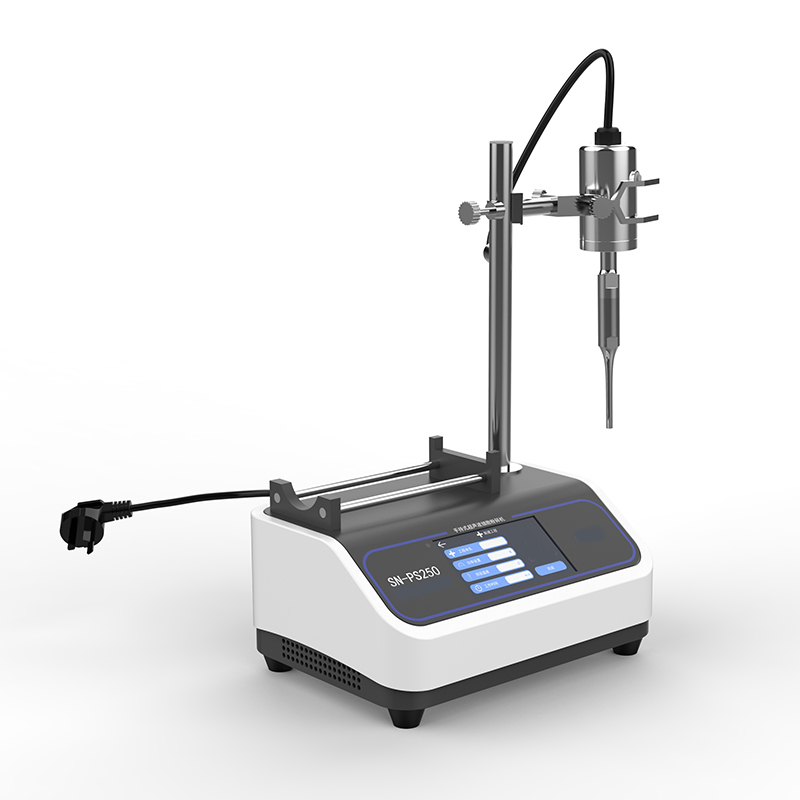

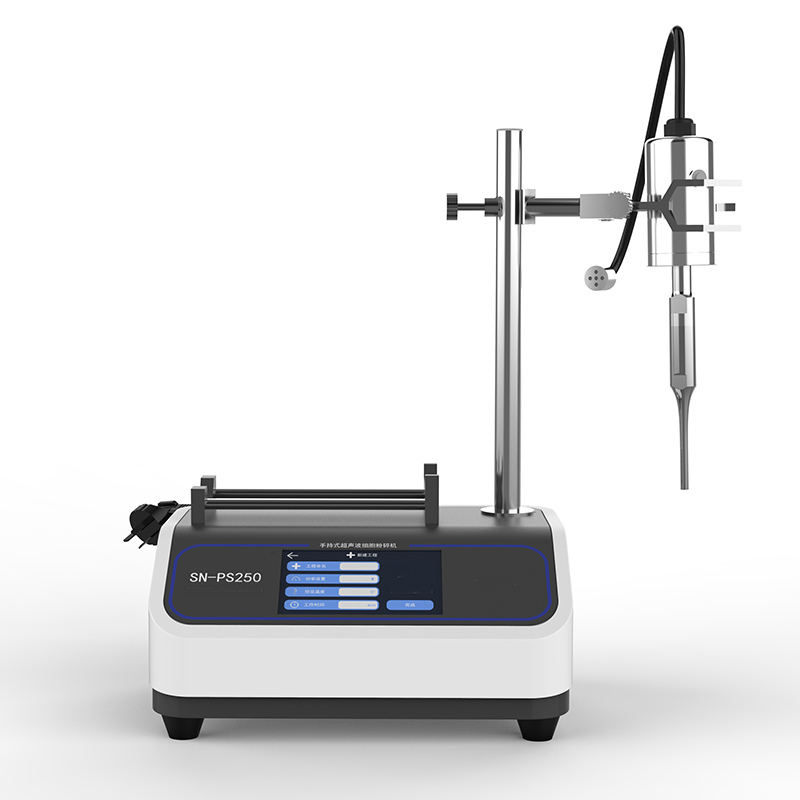

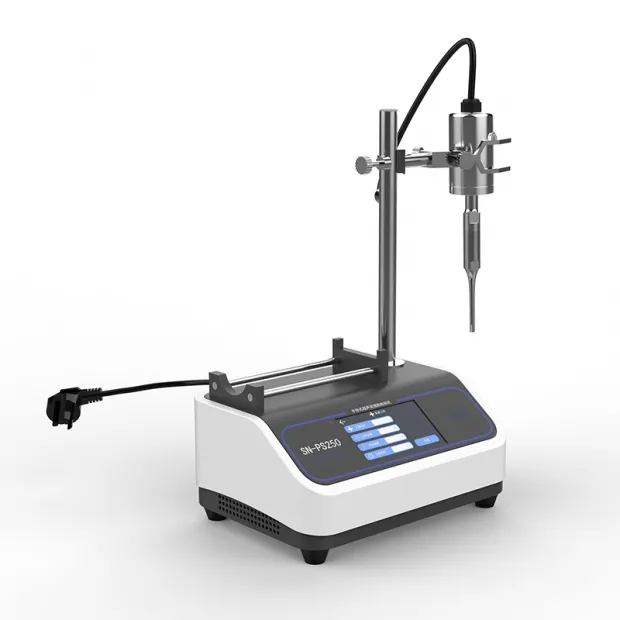

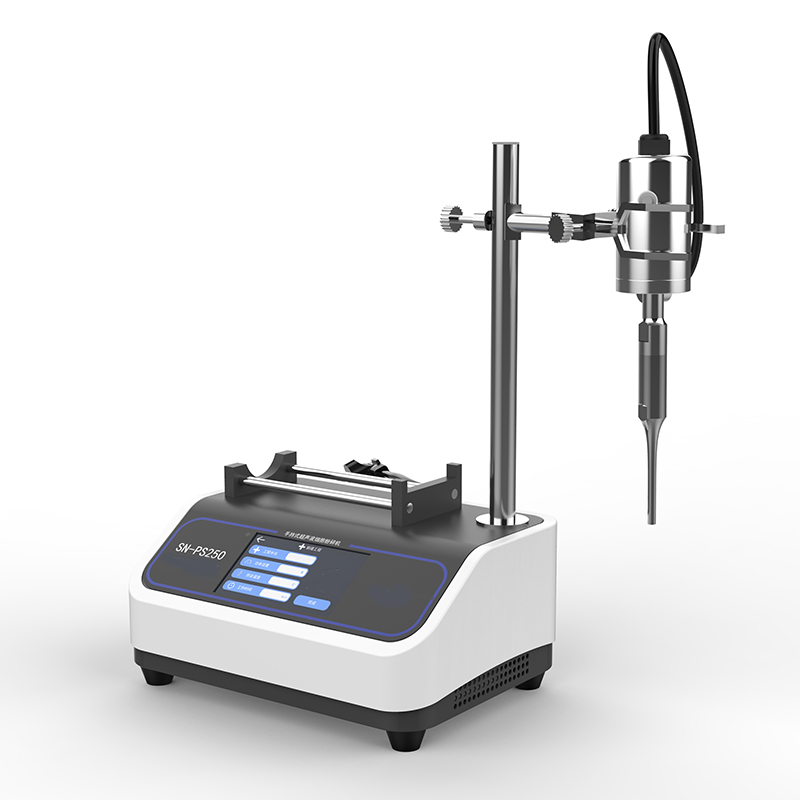

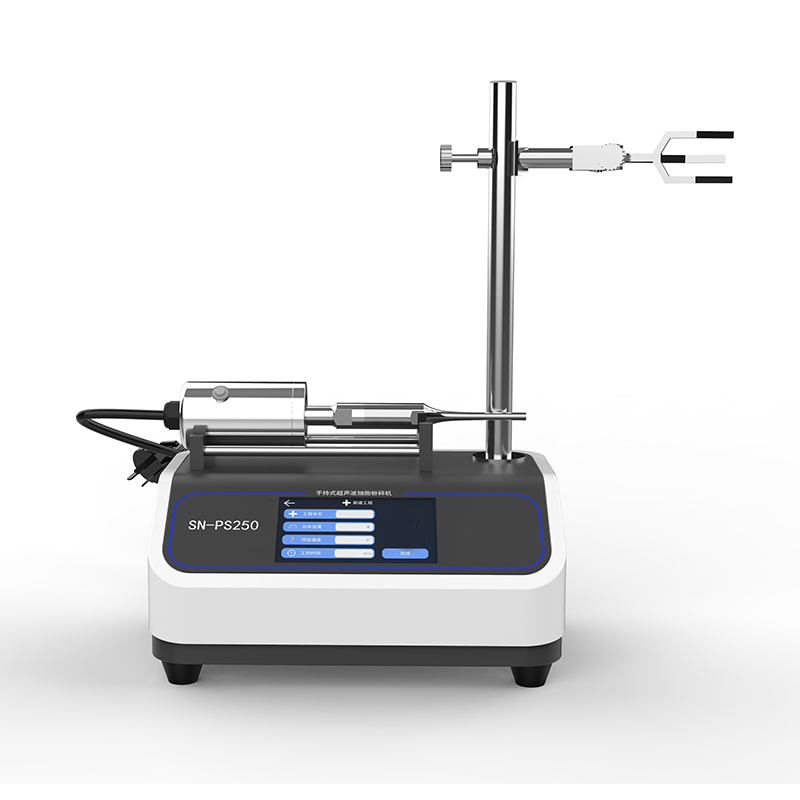

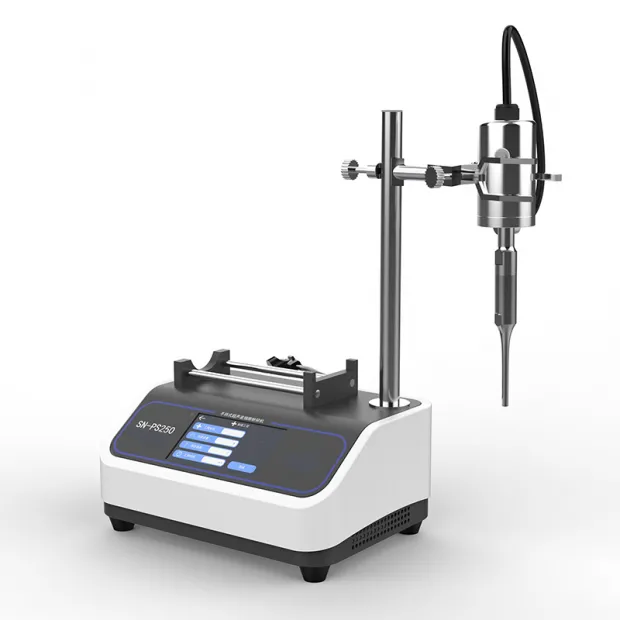

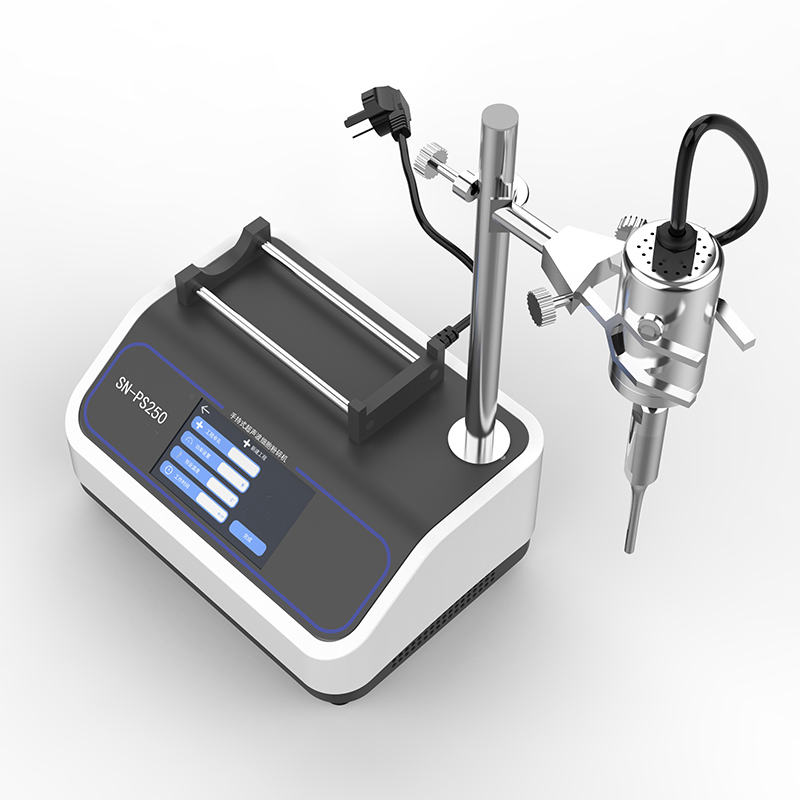

SN-PS Handheld Ultrasonic Cell Disruptor

The ultrasonic cell disruptor utilizes the principle of high-frequency and high-intensity ultrasonic oscillation to efficiently and thermally break down cells, tissues, or biomolecules, releasing internal biomolecules such as proteins, nucleic acids, etc. This device has the advantages of high crushing efficiency and easy operation, and is suitable for experiments and research in fields such as biology and biochemistry. The product line includes single/multi-channel, handheld, and non-contact ultrasonic cell disruptors.Customizable die size, die shape, and ultrasonic frequency (15-40KHz)

Inquire Now Next Product

Product Description

Working Principle >>

Based on the cavitation effect of ultrasound in liquid, the transducer generates high-intensity shear force in the liquid at the top of the tool head through the amplitude lever, forming high-frequency alternating water pressure, causing the cavity to expand and explode, and shattering the cells. Ultrasonic waves have a "cavitation" effect on fluid media, causing the formation of voids and bubbles in the liquid. When they rupture, a strong pressure peak is generated. In addition, the dispersion of polymers is achieved by utilizing the shock wave generated by the cavitation effect of ultrasound acting on liquids.

Product Feature >>

Portable degign, easy to move and carry

High safety with temperature detection display and over-temperature alarm function

Optional modes: Automatic and manual (foot pedal) two working modes;

Wide sope of application: supports direct processing of samples in enzyme plates and test tubes,with a maximum sample voluem of 10ml

Independent lithium batter equipped with independent lithium bater,supporting 4 hours of continuous operation(up-250s);

Flexible parameters: power and ultrasonic time are flexibly adjustable

Simple operation, hand-held point control of ultrasound.

Imported titanium alloy material, durable and available in multiple models, with different amplitude rods for different host devices.

Specifications	frequency	Display Mode	power	Amplitude transformer diameter	Run time adjustment	Crushing capacity	Interval time	Power parameters	Control method
SN-PS250	20KHz	5-inch touch screen display	250W (1%-100%)	φ6	0-960min	100μl-10ml	0-9S	Single phase 220V 50Hz	Automatic, Manual

Our Knowledgeable Team is Here to Help

1. Industrial Cleaning; 2. Laboratory Cleaning and General Equipment; 3. Gene Transduction; 4. High-Throughput Screening; 5. Fermentation Optimization; 6. Sample Pretreatment; 7. Separation and Purification; 8. Sample Preparation
