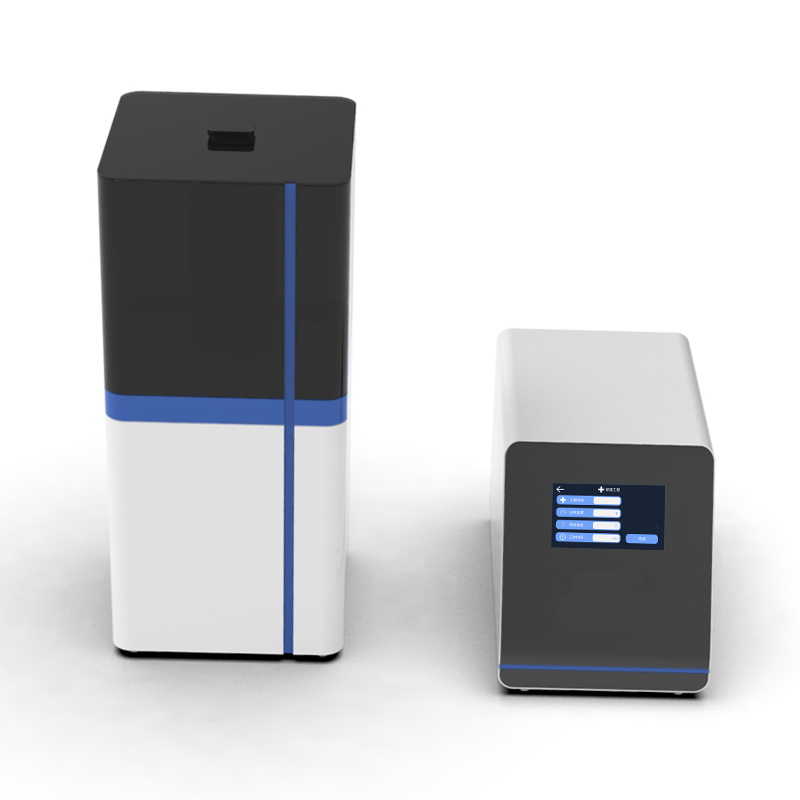

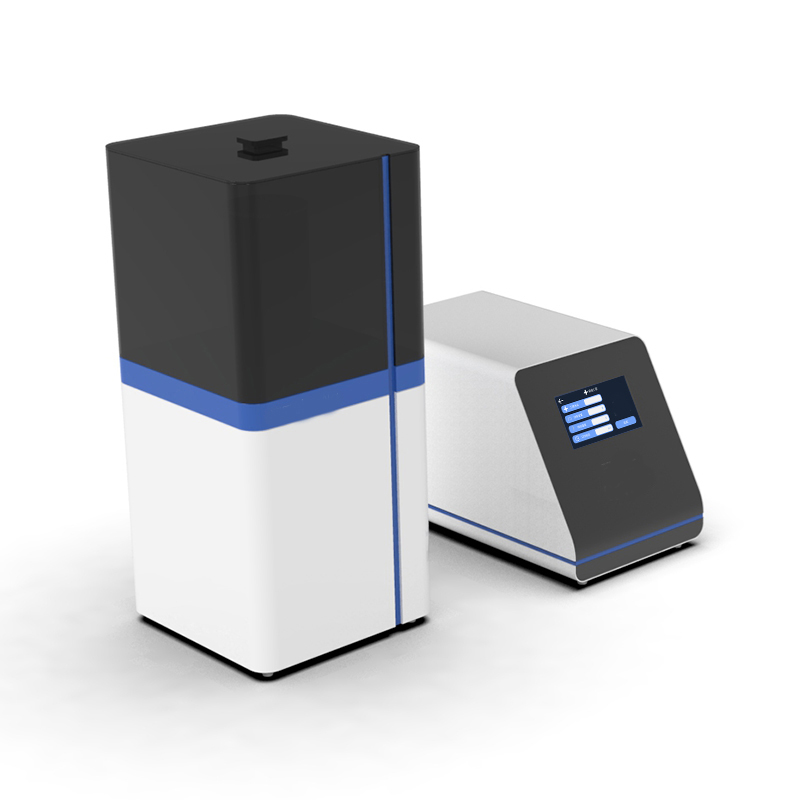

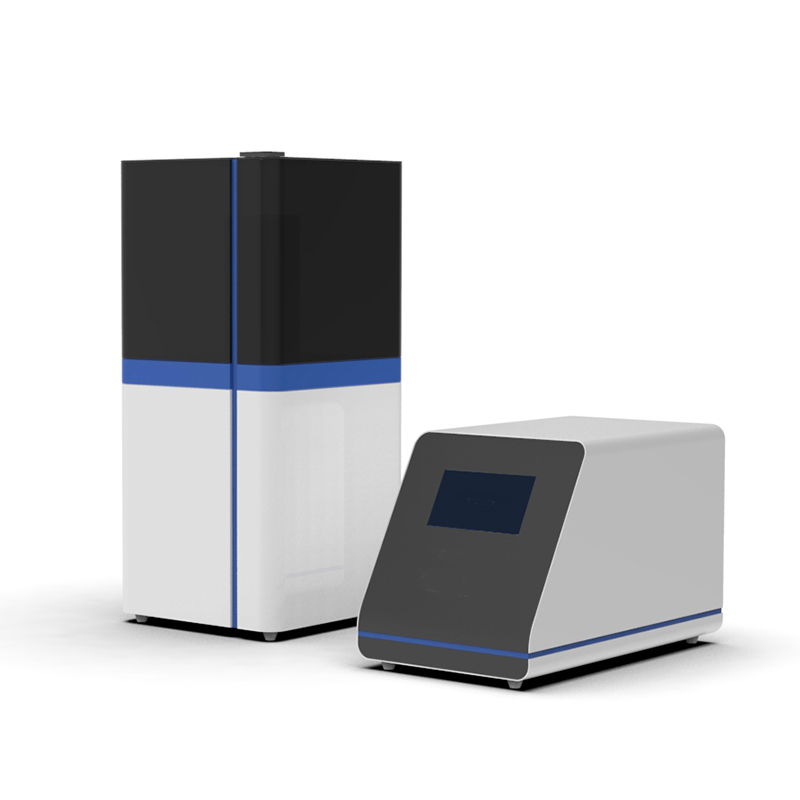

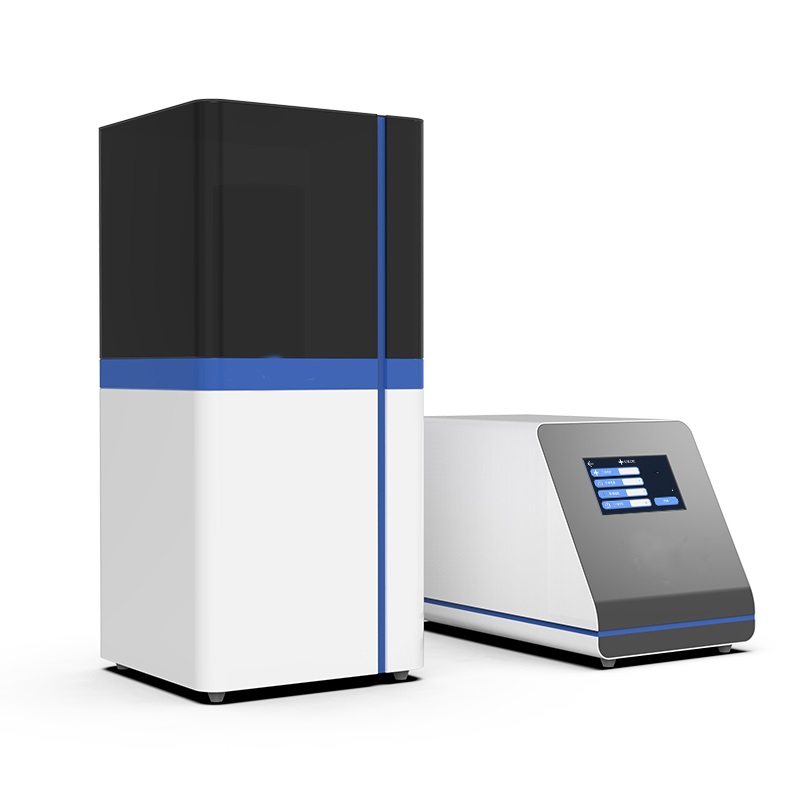

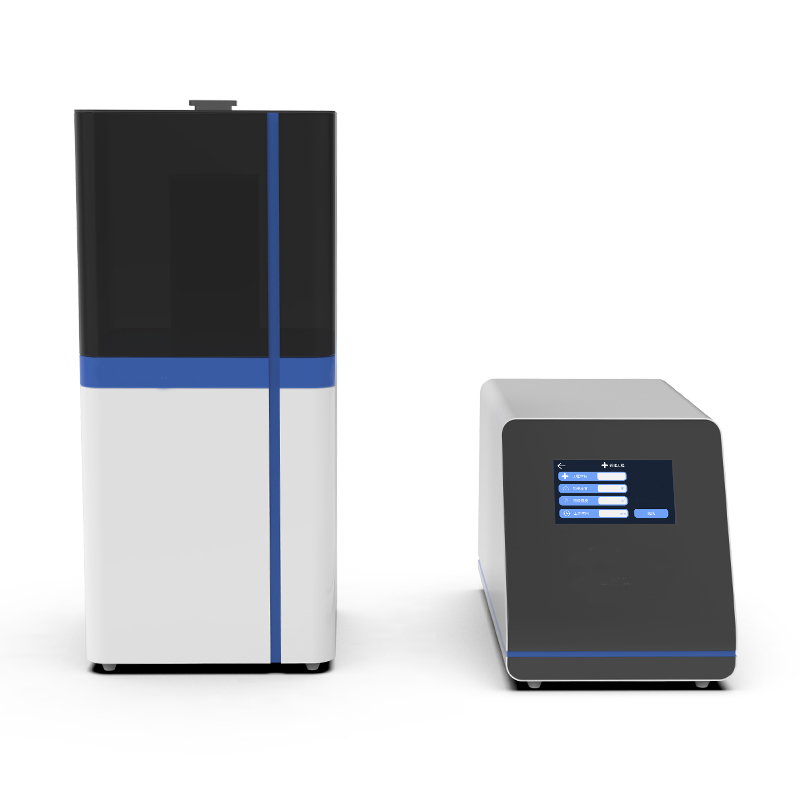

SN-PF No Contact Ultrasonic Cell Disrupter

The non-contact cell disruptor is an automatic frequency tracking cell disruptor, also known as a cup disruptor, used for aseptic fragmentation. It can break chromosomes and cells through a centrifuge tube. Specially designed for the pre-treatment of second-generation sequencing DNA samples and chromatin immunoprecipitation experimental samples, compared to traditional probe contact ultrasonic cell disruptors, non-contact samples can be crushed in a sealed container without producing infectious flying mist. The ultrasonic probe does not come into contact with the sample to avoid cross contamination. The non-contact ultrasonic crusher can achieve unparalleled quality, efficiency, and safety compared to traditional ultrasonic methods.

Inquire Now Next Product

Product Feature

Exquisite appearance	Streamlined body, high-quality SPCC steel plate combination nano coating process, wear-resistant and beautiful;
Flexible parameters	Time/power can be flexibly set;
LCD screen	7-inch intelligent color touch screen, clear display;
Ultrasonic system	Energy gathering high-energy transducer, digital drive board, capable of quickly processing various types of cells and samples;
Mode options	Multiple modes are available for automatic and manual jogging;
Intelligent storage	Create and store 20 sets of operating programs;
Automatic frequency tracking	Real-time adjustment of output frequency;
Program module	MCU core component, digital tracking, providing dual protection;
Safety protection	Sutomatic temperature detection, grounding, voltage and current protection, etc;
Double layered cavity	Transparent container interlayer for temperature control and visual operation;
Zero contamination of samples	Non contact elimination of cross contamination risks and traditional probe wear and debris phenomena;
High throughput fragmentation	Large area die, large ultrasonic radiation surface, efficient processing of multiple samples;
Rotating crushing design	The bracket is connected to a rotating motor, which uniformly receives ultrasonic impact and improves the crushing quality.

Specifications	Frequency	Display Mode	Power(W)	Run Time Adjustment	Duty Cycle	Crushing Chamber Capacity	Temperature Alarm	Interval Time	Power Parameters	Crushing Rotating Bracket
SN-PF1	20KHz	Touch 7 inches	1000 (1%-100%)	0-960min	0.1-99.9 %	1L	0-99.9°C	0-9S	220V/50Hz	(0.1-2ml)*6 holes
SN-PF2	20KHz	Touch 7 inches	1800 (1%-100%)	0-960min	0.1-99.9 %	2L	0-99.9°C	0-9S	220V/50Hz	(1-2ml)*16 wells
