Model NO.: SN-P

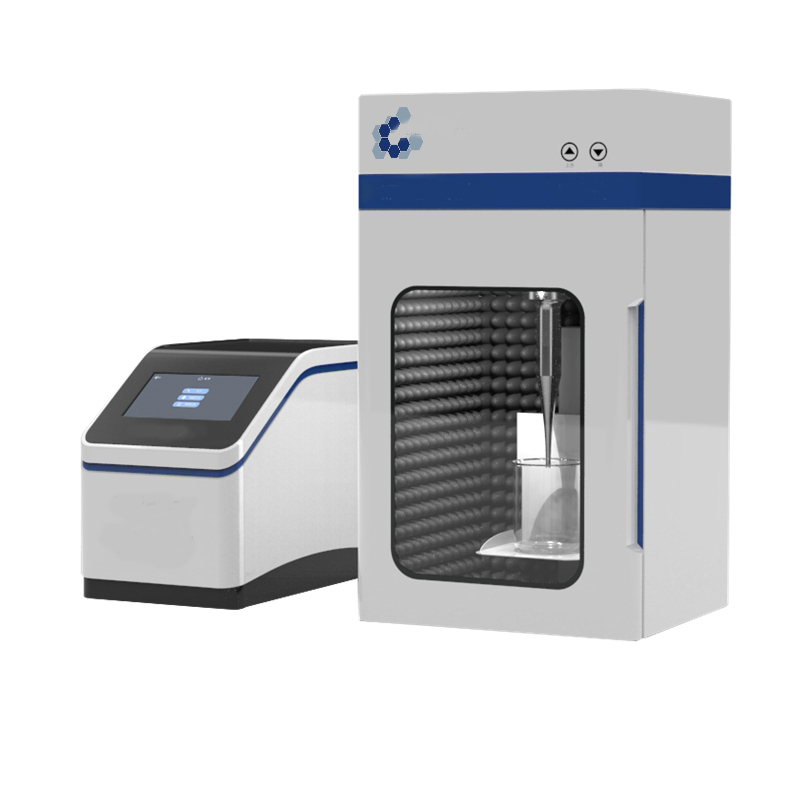

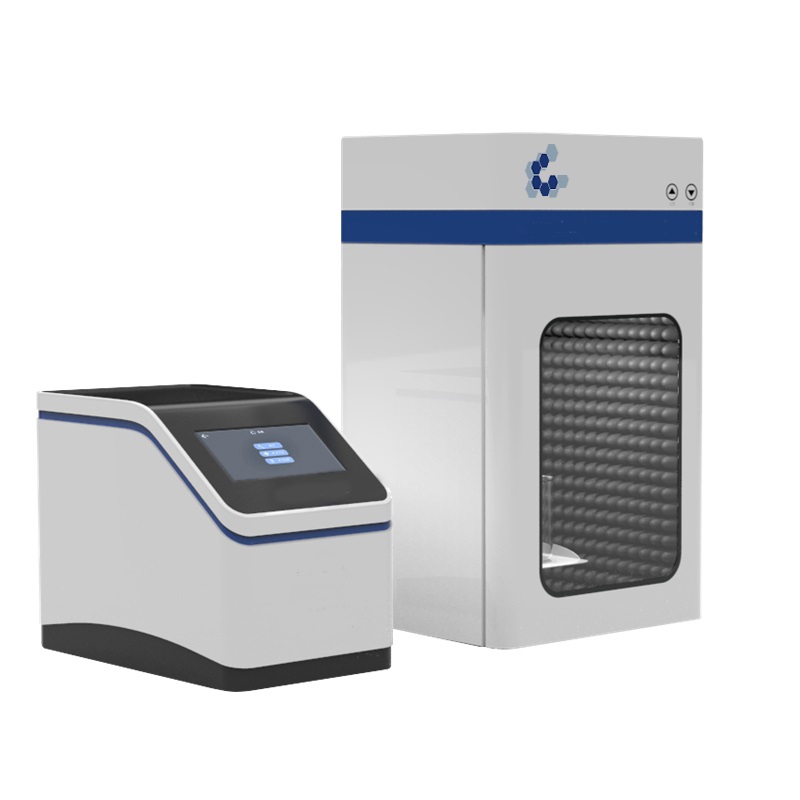

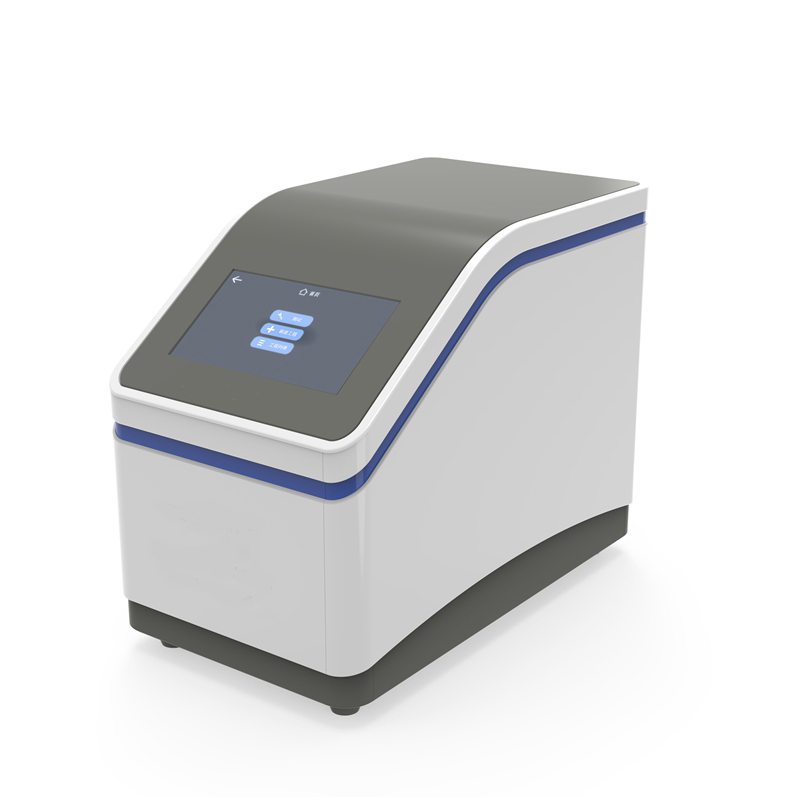

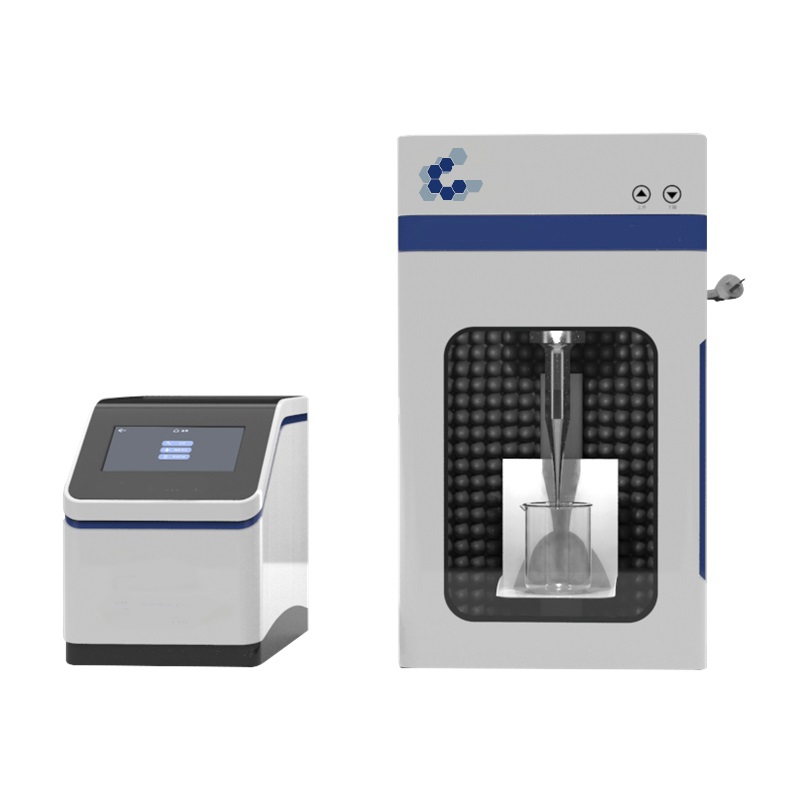

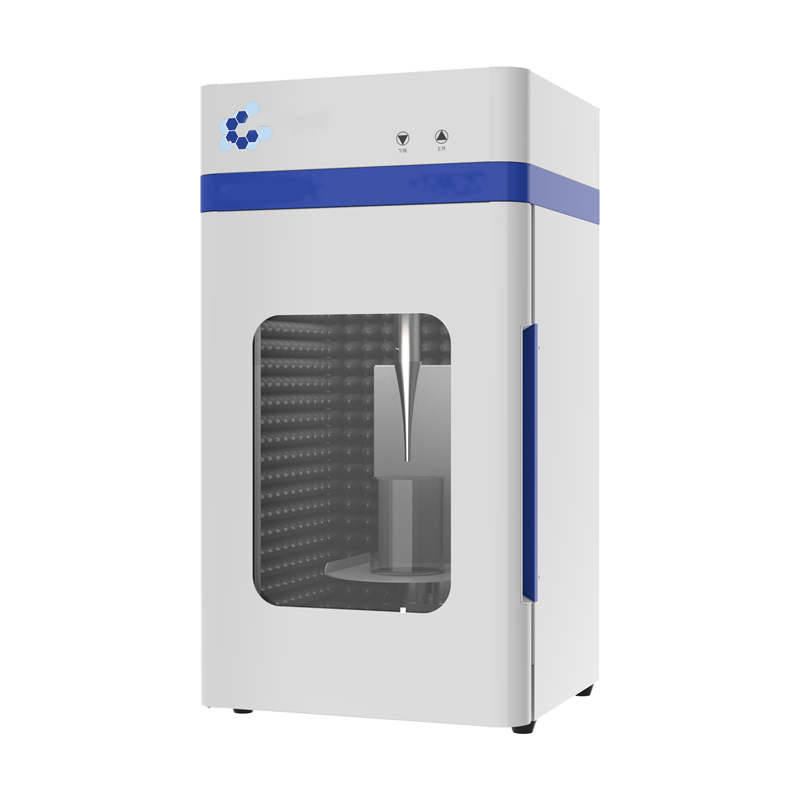

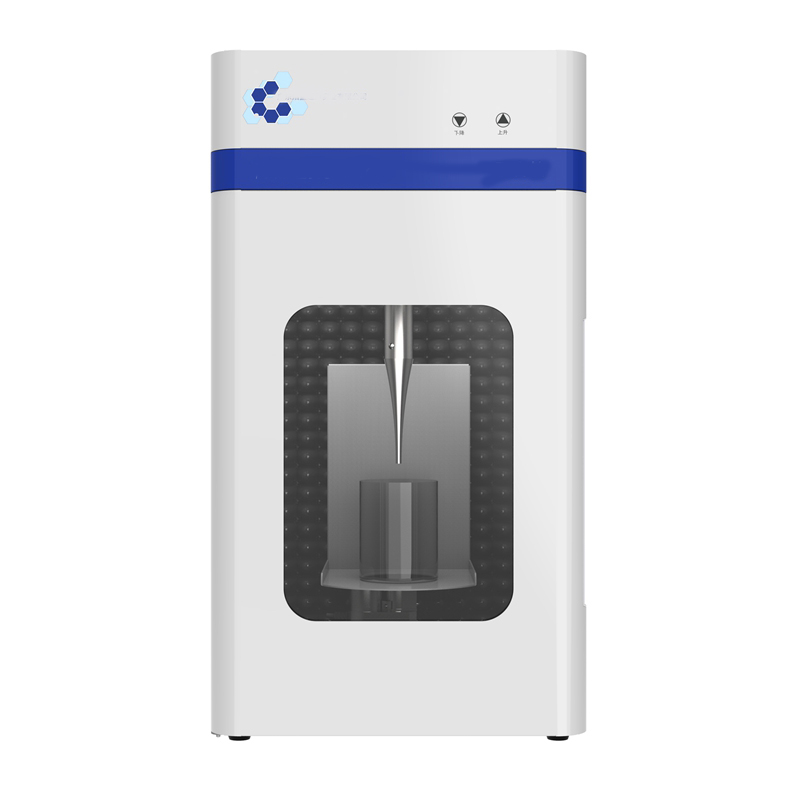

Single channel cell disruptor is an ultrasonic device used in laboratories and small batch liquid processing, which can safely process various organic and inorganic materials. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell disputer, sample preparation, homogenization, ChIP analysis, emulsification, depolymerization, and applications in the field of biochemical treatment.
This product has won the French Design Award
Product Feature
| Exquisite appearance | Streamlined body, high-quality SPCC steel plate combination nano coating process, wear-resistant and beautiful; |
| Power outage protection | Working parameters power-off memory, automatic protection, data storage; |
| LCD screen | 7-inch LCD touch screen, clear operation, real-time display of broken data; |
| Flexible parameters | Time/power can be flexibly set; |
| Ultrasonic system | High energy ultrasonic system for rapid processing of cells and samples; |
| Safety protection | Automatic temperature detection, grounding, overvoltage and overcurrent protection, etc; |
| Automatic frequency tracking | Self-developed automatic sweep frequency tracking control scheme, real-time adjustment of output frequency; |
| Intelligent storage | Capable of creating and storing 20 sets of operating programs; |
| Noise reduction design | Fully enclosed wrapped with noise reducing cotton; |
| Program module | MCU core component, digital tracking, providing dual protection; |
| Electric lifting | Electric lifting base with precise positioning. |
| Specifications | Frequency | Display Mode | Power | Random Horn | Optional Horn | Crushing Capacity | Temperature Alarm | Run Time Adjustment | Interval Output time Adjustment | Duty Cycle | Power Parameters | Workbench | Silent Box | Generator |
| SN-P150 | 20-25KHz | 7-inch touch screen display | 150 W (1%-100%) | 6 mm | 3 mm | 10-100ml | 0-99.9°C (to prevent sample overheating) | 0-960min | 0-9S | 0.1-99.9 % | Single phase 220V 50Hz | Electric lift | 350*320*620MM | 230*400*320MM |
| SN-P250 | 20-25KHz | 7-inch touch screen display | 250 W (1%-100%) | 6 mm | 3 mm | 10-200ml | 0-99.9°C (to prevent sample overheating) | 0-960min | 0-9S | 0.1-99.9 % | Single phase 220V 50Hz | Electric lift | ||
| SN-P650 | 20-25KHz | 7-inch touch screen display | 650 W (1%-100%) | 6 mm | 2, 3, 10, 12, 15 mm | 0.5-500ml | 0-99.9°C (to prevent sample overheating) | 0-960min | 0-9S | 0.1-99.9 % | Single phase 220V 50Hz | Electric lift | ||
| SN-P900 | 20-25KHz | 7-inch touch screen display | 900 W (1%-100%) | 6 mm | 2, 3, 10, 12, 15 mm | 0.5-600ml | 0-99.9°C (to prevent sample overheating) | 0-960min | 0-9S | 0.1-99.9 % | Single phase 220V 50Hz | Electric lift | ||
| SN-P1000 | 20-25KHz | Touch 7 inches | 1000 W (1%-100%) | 8 mm | 6, 10, 12, 15, 20 mm | 10-700ml | 0-99.9°C | 0-99min | 0-9S | 0.1-99.9 % | Single phase 220V 50HZ | Electric lift | ||
| SN-P1200 | 20-25KHz | Touch 7 inches | 1200 W (1%-100%) | 10 mm | 8, 12, 15, 20 mm | 10-800ml | 0-99.9°C | 0-99min | 0-9S | 0.1-99.9 % | Single phase 220V 50HZ | Electric lift | ||
| SN-P1500 | 20-25KHz | Touch 7 inches | 1500 W (1%-100%) | 15 mm | 12, 20mm | 10-1000ml | 0-99.9°C | 0-99min | 0-9S | 0.1-99.9 % | Single phase 220V 50HZ | Electric lift | ||
| SN stands for instrument, P stands for crusher, and 150 stands for power | ||||||||||||||
Our Knowledgeable Team is Here to Help
1. Industrial Cleaning; 2. Laboratory Cleaning and General Equipment; 3. Gene Transduction; 4. High-Throughput Screening; 5. Fermentation Optimization; 6. Sample Pretreatment; 7. Separation and Purification; 8. Sample Preparation
Customize NowSolution In Different Industrial Application
The laboratory ultrasonic machine can be used for very wide application in science research field. Included sample pretreatment, ultrasonic water bath, ultrasonic oscillation,emulsification, mixing, extraction, dispersion, elimination, degassing, cell crushing catalytic reaction, and assistance functions such as dissolution,acceleration of chemical reactions, viscosity reduction of adhesive liquids, semiconductor silicon wafers, new materials and energy, scraper extraction, Hypersonic magnetic materials and other applications.
The Mechanical Hardware Industry involves the manufacture, processing and sale of various mechanical parts. These parts are widely used in many fields such as construction, automobiles, electronics, and machinery manufacturing. The cleaning process is an important part of the mechanical hardware industry, which ensures that the parts meet the required cleaning standards before subsequent processing, assembly or use.
Medical Ultrasonic Clean Machine
Faced with the challenges posed by the most stringent standards in the medical industry, ultrasonic cleaning technology effortlessly rises to the task of cleaning during processing or reprocessing. The high-frequency vibrations generated by ultrasonic waves efficiently remove contaminants and microorganisms from instrument surfaces, ensuring medical devices meet cleanliness requirements that comply with industry regulations.
The Application of Ultrasonic Technology in Biological Research Experiments
Our products provide a range of equipment and solutions in the field of synthetic biology. From strain design, high-throughput screening (specimen processing, dynamic analysis) during the R&D phase to fermentation optimization, as well as pre-treatment for separation/purification and lyophilization preservation in the production phase. Through relevant supporting equipment, we help clients delve into the mysteries of synthetic biology and advance the development and application of synthetic biology.
Redcrown provides a variety of advanced instruments and solutions in the field of environmental protection. These equipment are widely used in environmental monitoring, pollution control, resource recovery and ecological restoration. Freeze dryer is used for soil sample drying. Ultrasonic cleaning is used for solvent treatment. Microbial growth curve analyzer is used for water pollution microbial degradation assessment. Ultrasonic cleaning is used for experimental cleanliness, etc.
In Vitro Diagnostics (IVD) refers to the analysis of human samples (e.g., blood, urine, tissues, cells) outside the body to obtain critical health information, including disease diagnosis, treatment monitoring, and prognostic evaluation. IVD technologies play a pivotal role in modern medicine, enabling early disease detection, guiding therapeutic decision-making, and assessing treatment efficacy. Redcrown provides advanced instruments and tailored solutions for the IVD sector, with applications spanning clinical testing, disease diagnostics, and scientific research.
