SN-FB Explosion Proof Ultrasonic Cleaning Machine
SN-FB Explosion Proof Ultrasonic Cleaning Machine

Model NO.: SN-FB

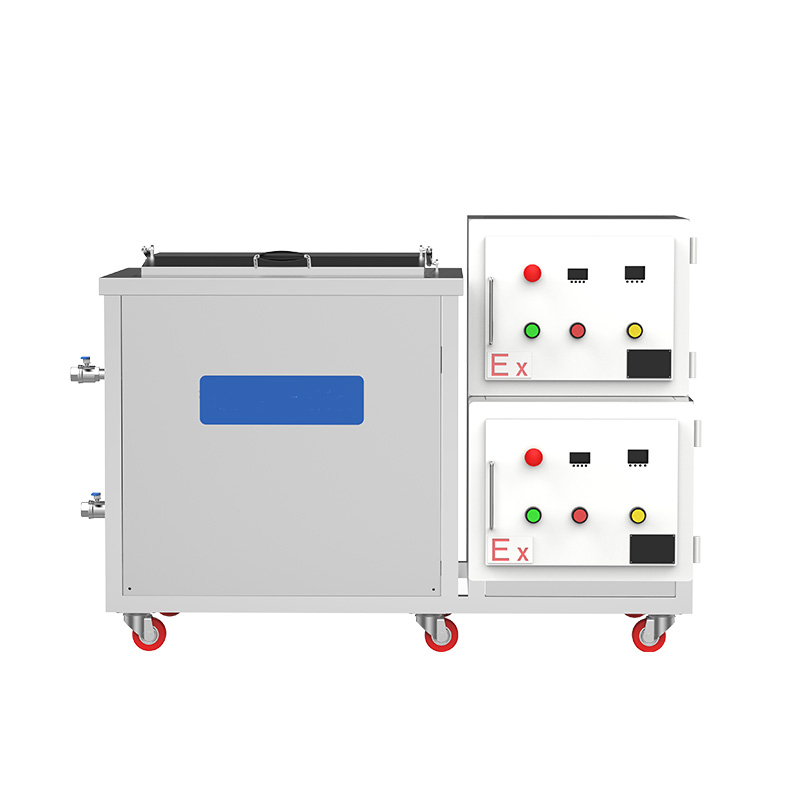

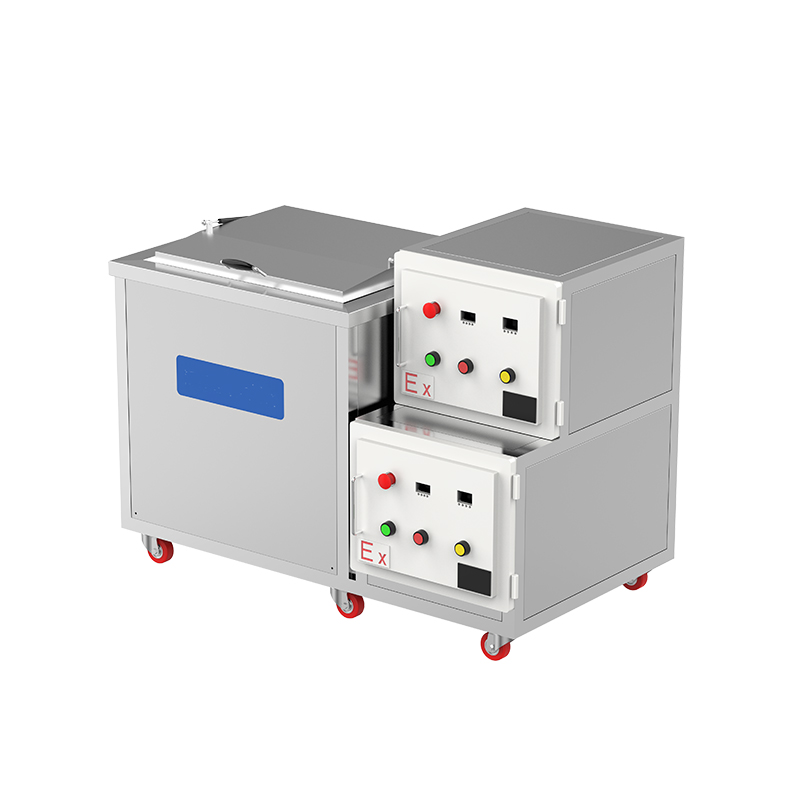

SN-FB Explosion Proof Ultrasonic Cleaning Machine

The explosion-proof ultrasonic cleaning device consists of explosion-proof control electrical box, explosion-proof generator, explosion-proof sleeve, explosion-proof switch, sealed vibration plate and other explosion-proof components above the national standard BT4 level. Make the product suitable for various high-risk explosive locations, safe and reliable, durable, and widely used in flammable and explosive pharmaceutical factories, nuclear industry, polymer material experiments, petrochemical industry, aerospace, high-risk flammable and other places.

Product Feature

Explosion proof design Using explosion-proof electrical cabinets to block flammable and explosive gases and electrical equipment the contact possibility of unit ;
Safety and Explosion proof Composed of national standard explosion-proof electrical boxes and other explosion-proof accessories, it is safe and reliable;
Strong adaptability Can be directly used with solvents such as alcohol, kerosene, hydrocarbons, ethanolanes, etc;
Module design The entire machine adopts modular design for various functions, which can be fully explosion-proof, partially explosion-proof, refrigeration and constant temperature, flexible matching and easy maintenance;
Optional functional modules
Ultrasonic cleaning Explosion-proof generator, explosion-proof control electrical box;
Refrigeration and Heating Constant Temperature Explosion proof Refrigerator, Explosion proof Heating Tube, Explosion proof Sensor, Explosion proof Control electrical box;
Filtering and cleaning Explosion-proof water pump, explosion-proof liquid level sensor, explosion-proof control electrical box;
Throwing lifting Explosion-proof motor, explosion-proof sensor, explosion-proof control box


Product ModelInner tank size/volumeUltrasonic methodInner groove materialExplosion-proof partcapacityfrequencyUltrasonic powerHeating powerTime ControltemperatureVoltageMaximum power of the whole machineInlet and outlet sizeStandard wire
SN-FB38S500X300X250Vibration plate type304 T2.0Control box/generator3840KHz600W1.5KW0-960minNormal temperature -95C°220V single phase2.1KW6 points1.5 m
SN-FB53S500X350X300Vibration plate type304 T2.0Control box/generator5340KHz900W1.5KW0-960minNormal temperature -95C°220V single phase2.4KW6 points1.5 m
SN-FB77S550X400X350Vibration plate type304 T2.0Control box/generator7740KHz1200W3KW0-960minNormal temperature -95C°220V single phase4.2KW6 points1.5 m
SN-FB99S550X450X400Vibration plate type304 T2.0Control box/generator9940KHz1500W3KW0-960minNormal temperature -95C°220V single phase4.5KW6 points, 1 inch1.5 m
SN-FB96S800X300X400Vibration plate type304 T2.0Control box/generator9640KHz1500W3kw0-960minNormal temperature -95C°220V single phase4.5KW6 points, 1 inch1.5 m
SN-FB135S600X500X450Vibration plate type304 T2.0Control box/generator13540KHz1800W4.5KW0-960minNormal temperature -95C°380V three-phase5.3KW6 points, 1 inch3 meters
SN-FB175S700X500X500Vibration plate type304 T2.0Control box/generator17540KHz2400W6KW0-960minNormal temperature -95C°380V three-phase8.4KW6 points, 1 inch3 meters
SN-FB264S800X600X550Vibration plate type304 T2.0Control box/generator26440KHz3000W6KW0-960minNormal temperature -95C°380V three-phase9KW6 points, 1 inch3 meters
SN-FB360S1000X600X600Vibration plate type304 T2.0Control box/generator36040KHz3600W9KW0-960minNormal temperature -95C°380V three-phase12.6KW6 points, 1 inch3 meters
SN-FB540S1000X900X600Vibration plate type304 T2.0Control box/generator54040KHz5400W18KW0-960minNormal temperature -95C°380V three-phase23.4KW1 1/4"3 meters
SN-FB960S1200X1000X800Vibration plate type304 T2.0Control box/generator96040KHz7200W24KW0-960minNormal temperature -95C°380V three-phase31.2KW1 1/2"3 meters
