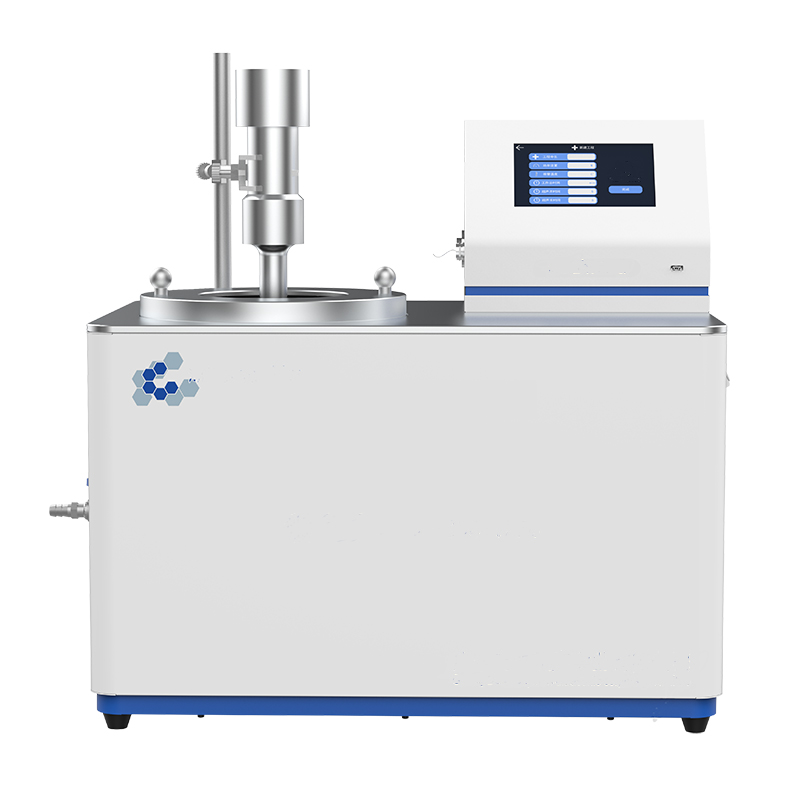

SN-C Energy Gathering Constant Temperature Ultrasonic Extractor

Model NO.: SN-C

SN-C Energy Gathering Constant Temperature Ultrasonic Extractor

The energy gathering constant temperature ultrasonic extractor is a new type of extraction equipment that combines modern ultrasonic technology and intelligent low-temperature constant temperature system. It uses the cavitation effect of ultrasonic waves to increase the frequency and speed of material molecules, thereby increasing the penetration of solvents and improving the dissolution rate of extracted components. Meanwhile, the secondary effects of its ultrasound, such as thermal and mechanical effects, can also accelerate the diffusion of the extracted components and fully mix with the solvent, thereby achieving efficient and rapid extraction processes.

Product Feature

Ultrasonic technology High-frequency vibration waves enhance the interaction between solvents and extracted molecules, improving extraction efficiency;
Intelligent low-temperature constant temperature system The extraction process maintains a constant temperature, ensuring optimal temperature conditions for extraction;
Touch screen integrated control Easily set data, store data, and control work status;
Intelligence Automatically track frequency to ensure the stability and reliability of ultrasonic transmission power;
Flexible parameters Adjust ultrasound power, time, and reaction temperature according to different extraction requirements;
Uniform temperature stirring DC brushless stirring system ensures maximum reaction and radiation conduction of the liquid during the extraction process;
High and low temperature reaction A device for forced cooling and heating, which can be turned on under high or low temperature conditions to achieve temperature difference impact


ModelFrequencydisplyUltrasonic Poweramplitude poleDisruper capacityTemperatureWorkingtime adjustableInterval outputDuty ratioPower supplyMixingCoolingPowerHeatingPower
SN-C65020-25KHz7inch650 W6 mm250mL0-99°c0-960min0-9S0.1-99%220V 50HZMagnet700W1000W
SN-C100020-25KHz7inch1000 W10 mm500mL0-99°c0-960min0-9S0.1-99%220V 50HZMagnet700W1000W
SN-C120020-25KHz7inch1200 W15 mm800mL0-99°c0-960min0-9S0.1-99%220V 50HZMagnet700W1000W
