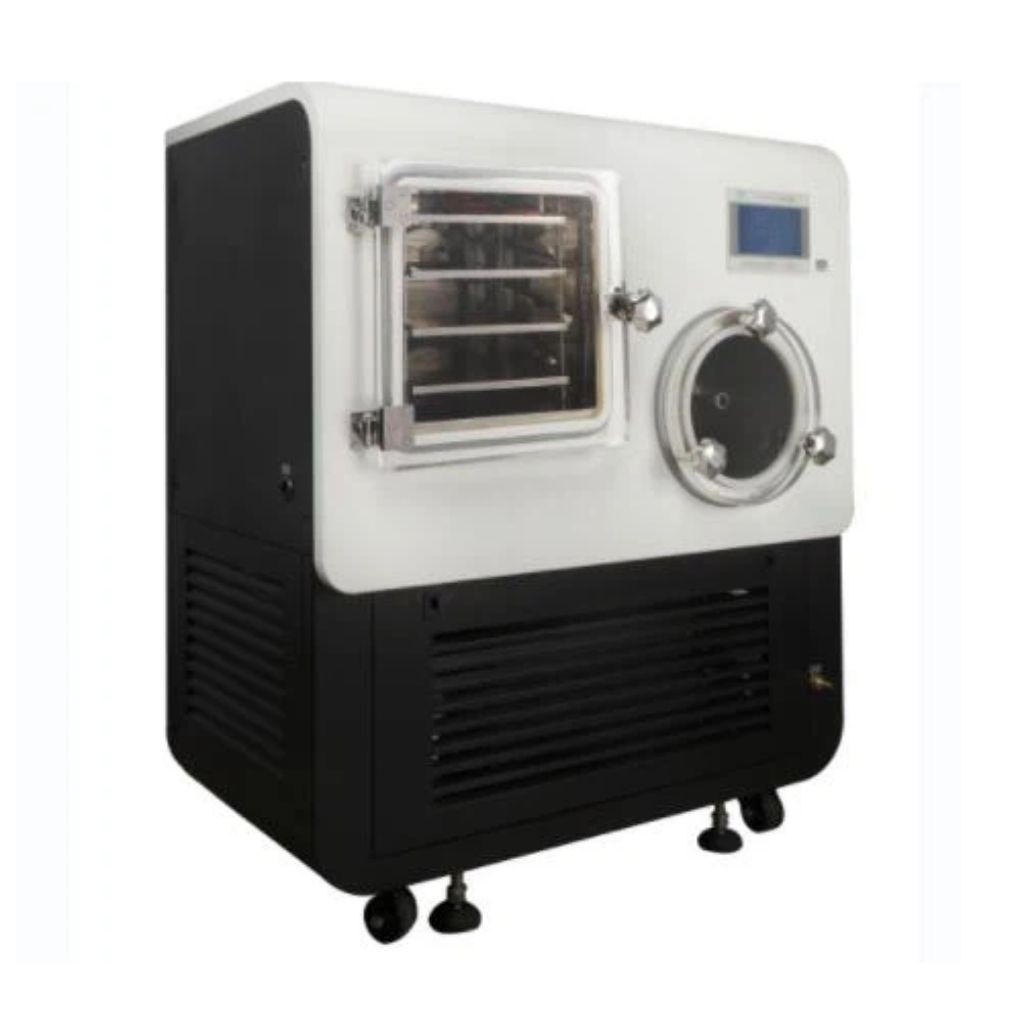

Industrial freeze dryer : 1.The machine adopts international brand Danfoss compressor ,quickly refrigeration ,low temperature of cold trap 2. 7' LCD touch control system ,operation simply and convenient and powerful 。 3.Industrial embedded operation system and ARM9 core control circuit design ,32M and 128 flash memory ,operation response quickly ,large amount of stored data
Product Parameters
Cold chamber(no load)：＜-70℃
Vacuum drgree(no load)：＜10 Pa
Dry area：1.08㎡
Material tray：600mm×450mm (4tray)
Tray space：70 mm
Tray volume：10L
Schering bottle quantiy：2210、4190、7020
Capture water：15kg
Voltage/Frequency：380V50HZ
power：6.8kw
Temperature range：--50℃-+60℃
Host size：W1280×D1050×H1535 mm
Application Fields
1. Biomedical Field：Vaccine preparation、Lyophilization preservation of viral vaccines/nucleic acid vaccines、GMP-compliant biopharmaceutical production、Protein-based drugs、Dehydration of heat-sensitive substances like antibodies and enzyme preparations、Industrial production of lyophilized powder injections
2. Food Technology Field：High-end food processing、Large-scale production of ready-to-eat freeze-dried fruits/vegetables、Preparation of aerospace/military freeze-dried foods、Functional foods、Active preservation of probiotic freeze-dried powder、Drying of nutritional substances like collagen peptides
3. Nanomaterials Field：Nanomaterial powder preparation、Drying processes for nanomaterials to prevent high-temperature agglomeration、Processing of graphene/carbon nanotube dispersions
4. Scientific Research & Testing Institutions：Reference material preparation、Lyophilization of national standard samples、Long-term preservation of laboratory reference materials
Archaeological restorationFreeze-drying treatment of cultural relic extraction solutions
Core Advantages with Scenario Compatibility
In-situ freeze-drying technology: Prevents sample transfer contamination (especially for sterile preparations)
-70°C deep freezing + 10Pa high vacuum: Ensures activity of thermosensitive substances
1.08㎡ large drying area: Meets pilot-to-production transition needs
4-layer adjustable trays: Accommodates containers of different heights (e.g., vials, petri dishes)
