Model NO.: DNU-1020

Dry Non-Contact Ultrasonic Cell Disruptor

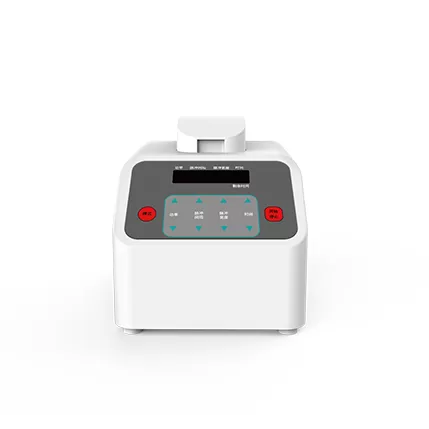

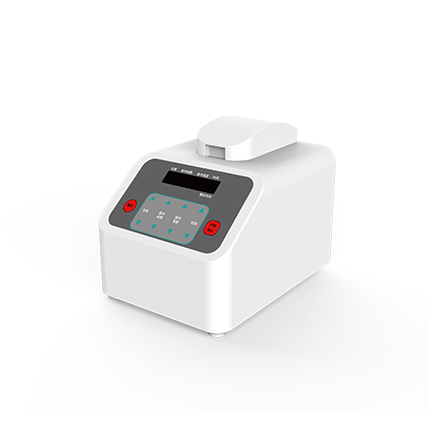

Dry-Type Non-Contact Ultrasonic Cell Disruptor DNU-1020

The DNU-1020 Dry-Type Non-Contact Ultrasonic Disruptor is specifically designed for rapid pre-processing of trace samples in fast-detection scenarios. It addresses the pain points of traditional probe-type ultrasonic disruption by:

Non-contact processing (eliminating cross-contamination)

Simplified operation (no complex setup required)

Ultra-fast treatment (ideal for high-throughput workflows)

Key Specifications:

Ultrasonic Power: Max 30W (10 adjustable levels)

Working Volume: 500-1000μL

Temperature Control: Peltier cooling (8-12°C range)

Inquire Now

Product Parameters

1.Core Configuration

Disruption Method: Dry non-contact ultrasonication

Max Power: 30W (10 adjustable levels)

Working Volume: 500-1000μL

2.Temperature Control

Cooling: Peltier thermoelectric cooling

Temperature Range: 8-12℃ (±0.5℃ accuracy)

3.Operational Features

Processing Speed: <30 seconds per sample

Compatibility: Standard 1.5/2mL tubes

1.Molecular Diagnostics

Nucleic acid testing (e.g. SARS-CoV-2 RNA extraction)

Cell-free DNA processing

2.Forensic Analysis

Trace biological evidence disruption

Micro-samples (hair/skin flakes) processing

3.Cell Research

Tough cell lysis (e.g. yeast)

Exosome isolation preprocessing
