Home > Products>Industrial Ultrasonic Cleaner>100-2000L 6-Tank Multi-Stage Ultrasonic Cleaner for Aerospace & Automotive

Model NO.: JP-60

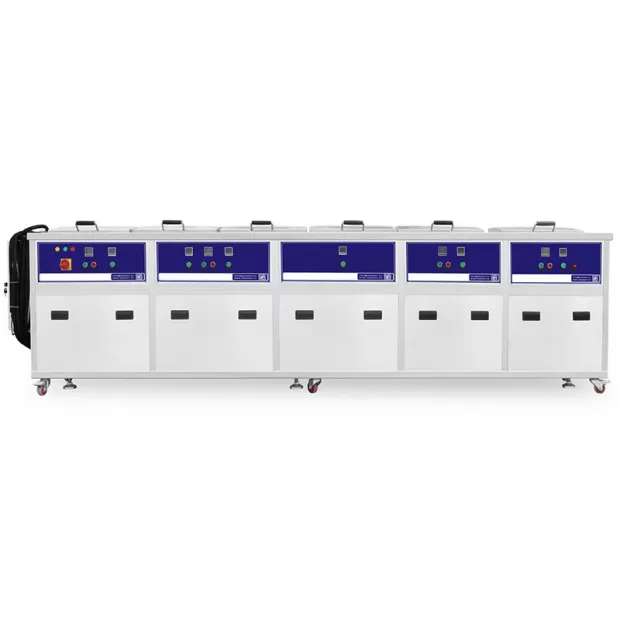

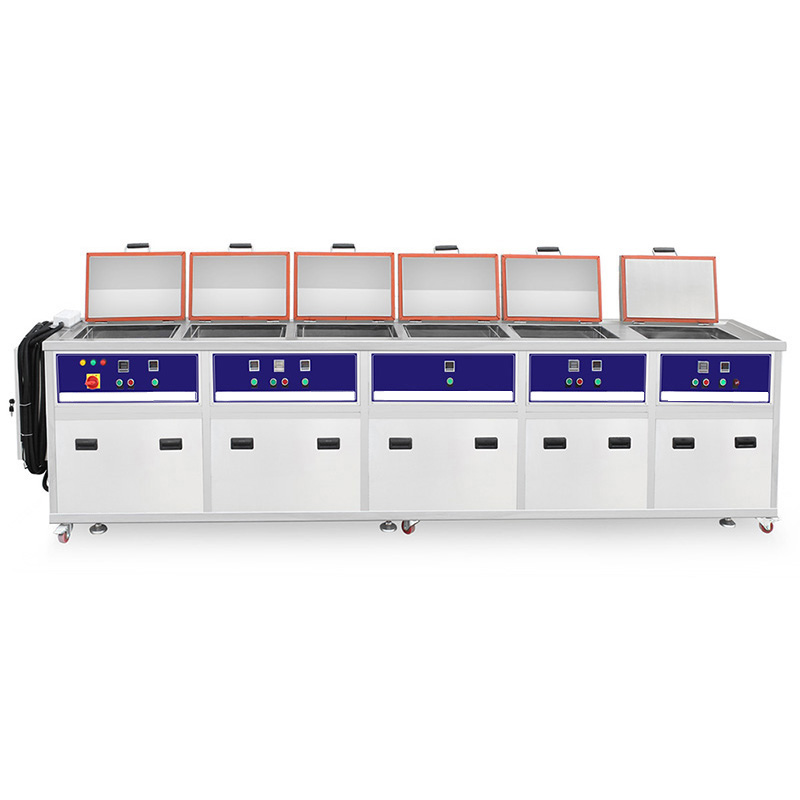

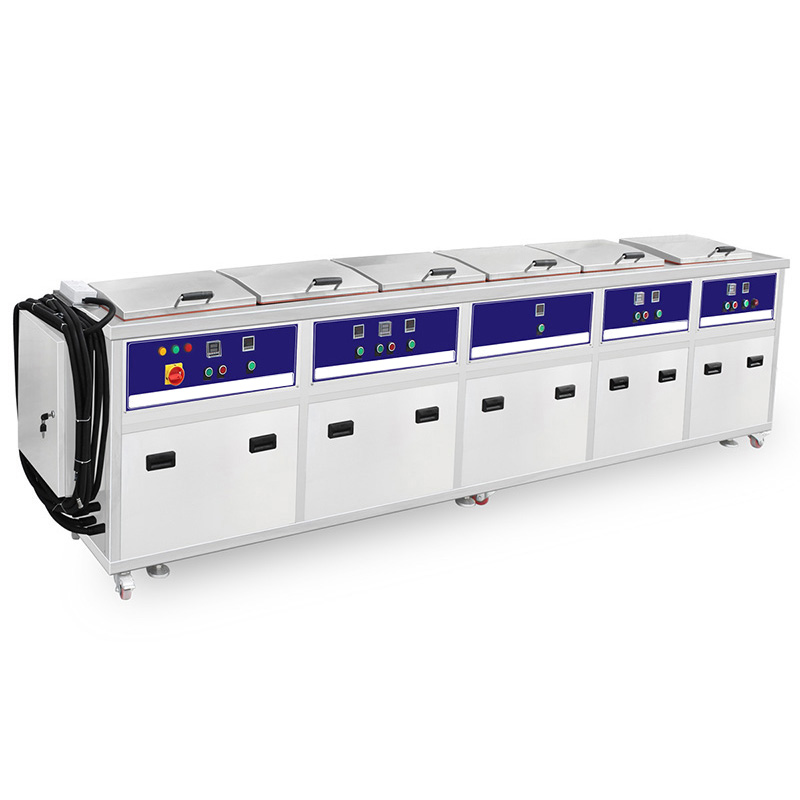

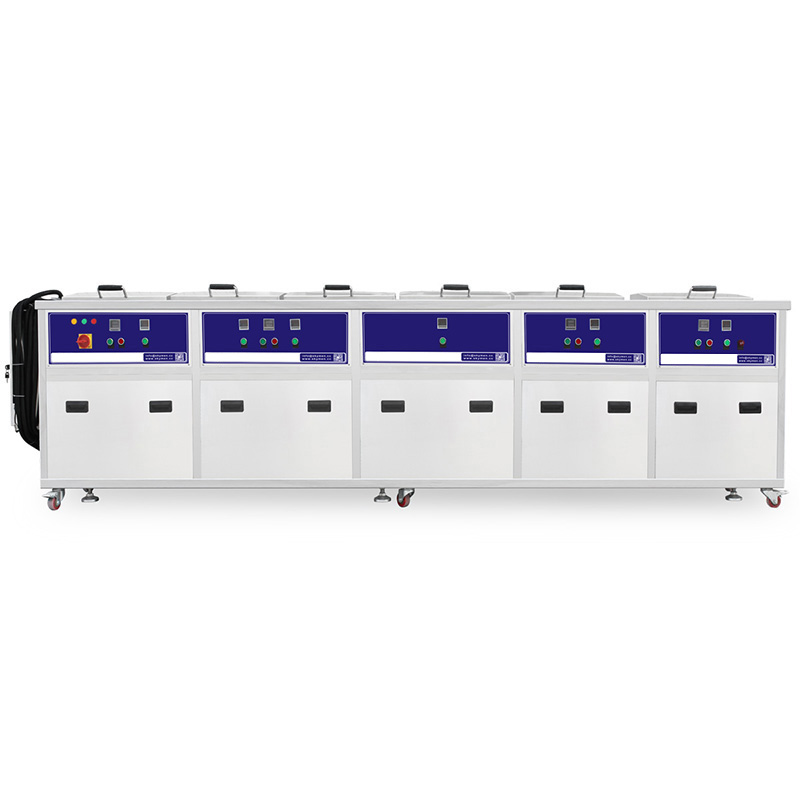

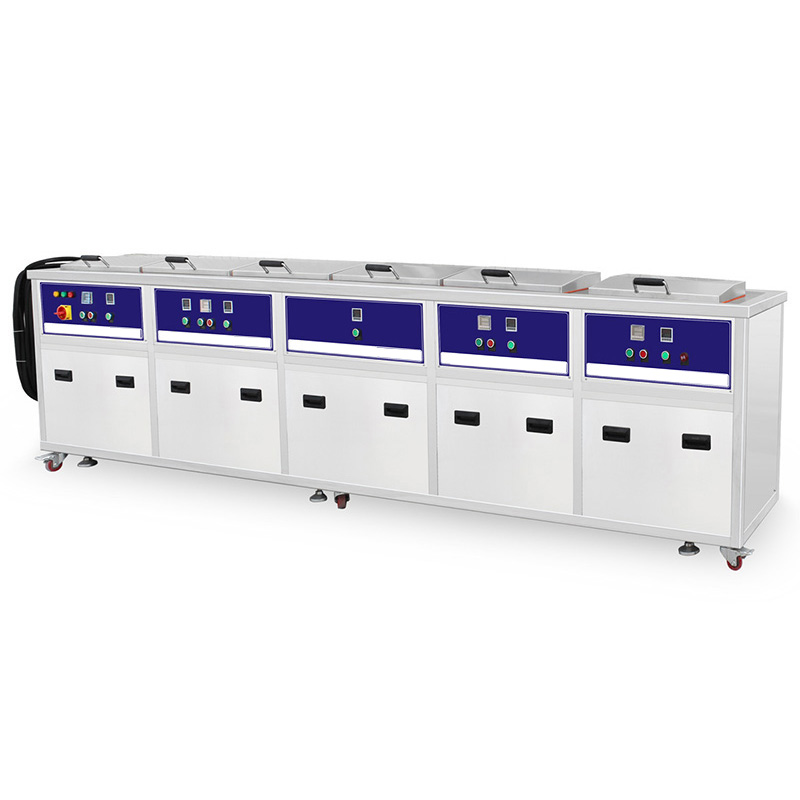

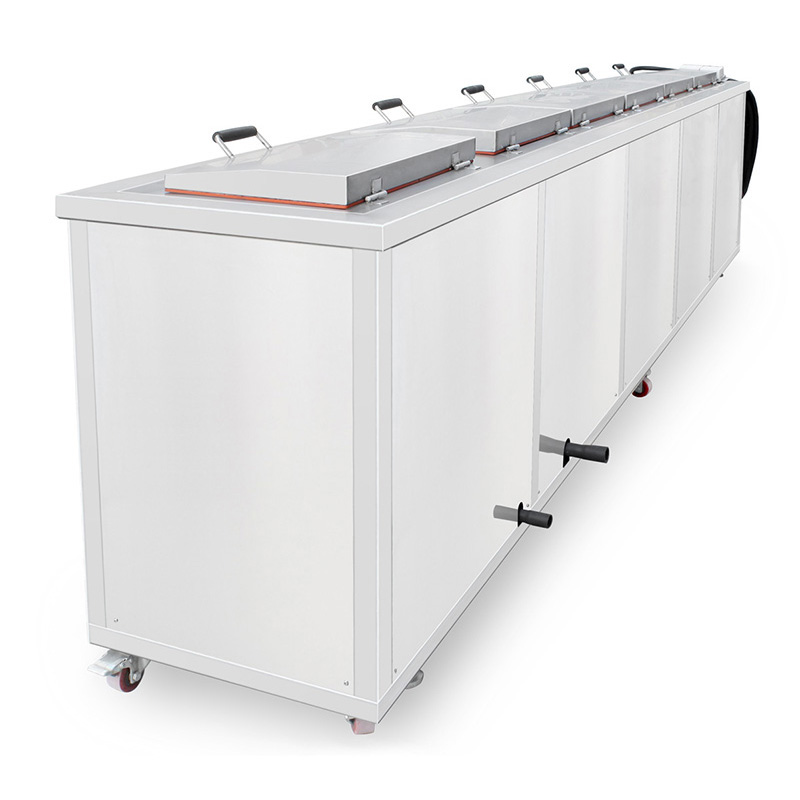

100-2000L 6-Tank Multi-Stage Ultrasonic Cleaner for Aerospace & Automotive

This industrial-grade ultrasonic cleaning solution features expandable tank configurations with 8+ programmable functions - from intensive degreasing to precision spray-rinse cycles.

Advanced 28-40kHz ultrasonic transducers generate targeted cavitation energy, thoroughly eliminating particulate matter, oxidation layers, and hydrocarbon residues from complex assemblies.

The heavy-duty construction combines chemical-resistant 304-grade stainless steel chambers with industrial PLC controls, supporting continuous operation at 150℃ thermal conditions.

With adaptive frequency modulation for delicate substrates (glass/ceramics) and aggressive cleaning protocols (metal machining parts), it serves semiconductor labs, surgical tool sterilization units, and automotive restoration facilities.

Energy-saving pulse technology reduces power consumption by 30% while maintaining cleaning efficacy, fully certified under PSE/ROHS/FCC international guidelines.

Inquire Now

Product Feature

1.Fluid Versatility: Switch between degreasers, passivation acids, or DI water without retooling – ideal for aerospace CFRP or medical device sterilization.

2.Material-Smart Controls: Preprogram recipes for brass deburring (55°C/8min) vs. optical lens degunking (30°C/3min) via touchscreen interface.

3.Heavy-Duty Longevity: Electropolished SUS304 tanks survive 10+ years in electroplating shops or offshore drilling equipment maintenance.

4.Cavitation Consistency: Military-spec transducers resist frequency drift even in -20°C to 70°C ambient conditions.

5.Resource-Sipping Design: Cut annual water usage by 25,000+ gallons vs. spray wash systems – compliant with REACH/ROHS sustainability mandates.

6.Hands-Free Security: Multi-stage interlocks (tilt sensors, emergency drainage) enable AS9100-certified aerospace part processing.

7.Bespoke Scalability: Configure 38L R&D units or 800L automated lines with SCADA connectivity for automotive tier suppliers.

8.Sector-Specific Upgrades: Add vacuum drying for watchmaking micro-parts or hydrocarbon recovery for CNC machine coolant recycling.

6-tank ultrasonic cleaner (Cleaning with filtration system +rinsing+spraying+drying)

Model	Inner tank size（MM）	Capacity（L）	Transducer（pc）	Frequency（KHz）	Ultrasonic power（KW）	Heating power（KW）	Drying power	Timer（H）	Temp（℃）	Drying temp
JTM-3036GH	500300250	38L	24	28/40KHz optional	1.8	6	3000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3054GH	500350300	53L	36	28/40KHz optional	2.7	6	3000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3072GH	550400350	77L	48	28/40KHz optional	3.6	12	3000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3090GH	550450400	99L	60	28/40KHz optional	4.5	12	4500W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3108GH	600500450	96L	60	28/40KHz optional	5.4	18	4500W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3144GH	700500500	135L	72	28/40KHz optional	7.2	24	4500W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3180GH	800600550	175L	96	28/40KHz optional	9	24	6000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3216GH	1000600600	264L	120	28/40KHz optional	10.8	36	6000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3252GH	1500700400	360L	144	28/40KHz optional	12.6	60	6000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3288GH	1200500800	420L	168	28/40KHz optional	14.4	60	6000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3324GH	1000900600	480L	192	28/40KHz optional	16.2	72	9000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3360GH	1000800800	540L	216	28/40KHz optional	18	84	9000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3396GH	10001000800	640L	240	28/40KHz optional	19.8	96	9000W	0-99H	Room temp-95℃	Room temp-150℃
JTM-3432GH	12001000800	800L	264	28/40KHz optional	21.6	96	12000W	0-99H	Room temp-95℃	Room temp-150℃

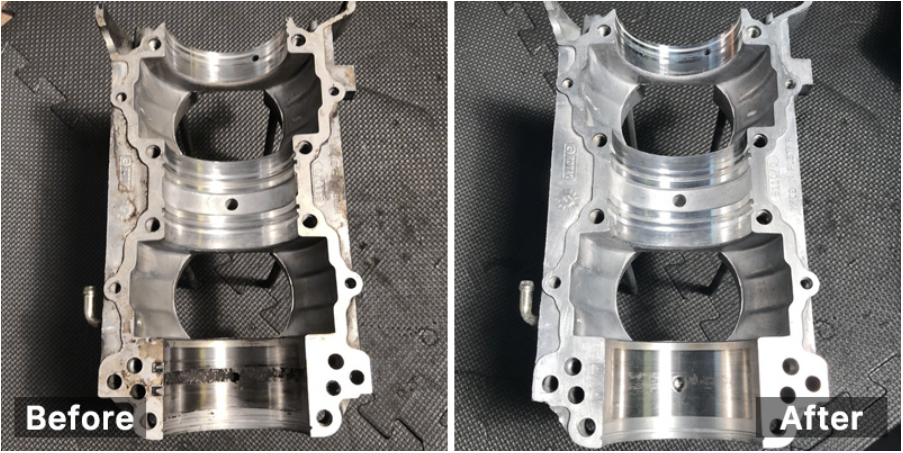

Application Effect

Ultrasonic cleaning provides a fast and effective way to eliminate oil, grease, rust, glue, and other debris. It's particularly useful for reaching blind holes, narrow gaps, and difficult-to-access areas on different types of workpieces.

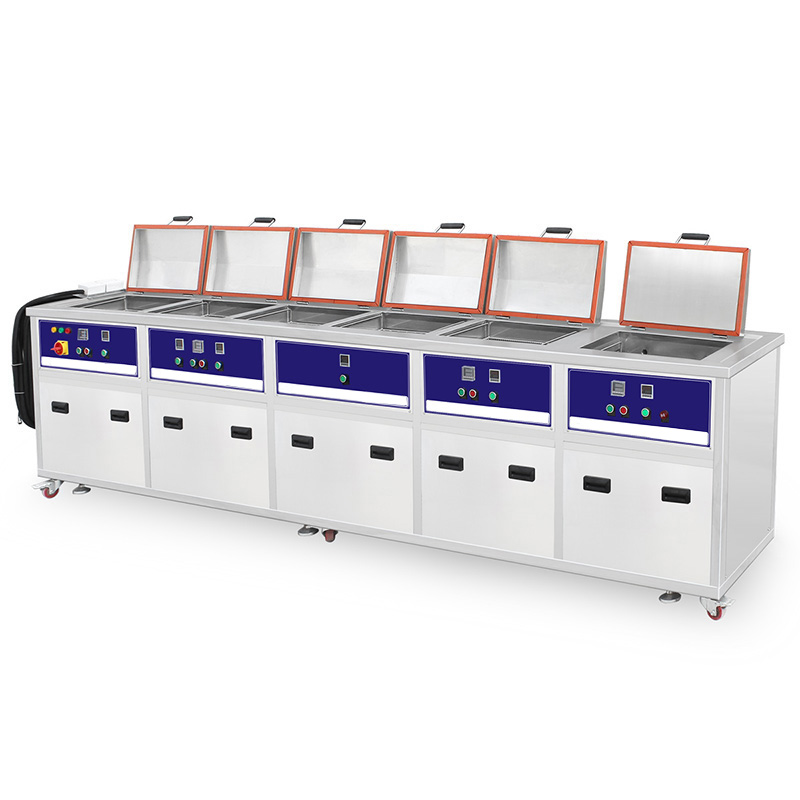

6-tank Ultrasonic Cleaner
