38L-1500L 4 Tank Heavy-Duty Ultrasonic Cleaner for Industrial Parts with Filtration Rinsing Spraying Drying
38L-1500L 4 Tank Heavy-Duty Ultrasonic Cleaner for Industrial Parts with Filtration Rinsing Spraying Drying
38L-1500L 4 Tank Heavy-Duty Ultrasonic Cleaner for Industrial Parts with Filtration Rinsing Spraying Drying
38L-1500L 4 Tank Heavy-Duty Ultrasonic Cleaner for Industrial Parts with Filtration Rinsing Spraying Drying
38L-1500L 4 Tank Heavy-Duty Ultrasonic Cleaner for Industrial Parts with Filtration Rinsing Spraying Drying

Model NO.: JP-40

38L-1500L 4 Tank Heavy-Duty Ultrasonic Cleaner for Industrial Parts with Filtration Rinsing Spraying Drying

The multi-tank ultrasonic cleaner offers more compartments and customizable features, including but not limited to cleaning, rinsing, drying, filtrating, bubbling, lifting, agitating, spraying, explosion-proofing and cooling.

The machine utilizes high-frequency ultrasonic waves (typically 28KHz/40 KHz) to generate microscopic cavitation bubbles, effectively removing contaminants like grease, oil, rust, and particles from surfaces, even in hard-to-reach areas or intricate geometries, The machine is suitable for a wide range of industries, including automotive, aerospace, electronics, medical,ect. Cleaning materials compatible with metals, plastics, ceramics, and glass.

Customized settings to optimize cleaning performance for delicate components or heavily soiled parts.

Higher frequencies (eg. 40 KHz+) provide gentler cleaning,durable construction built with corrosion-resistant SUS304 stainless steel tanks and robust components to withstand harsh chemicals, high temperatures 150 ℃.

Energy-Efficient Design use advanced generators and heating systems minimize power consumption while maintaining consistent cleaning performance.Product with CE ,ROHS ,PSE,FCC certificate.

Product Feature

1.Multi-Chemical Compatibility: Process all industrial cleaners (PH 2-12) in one ultrasonic tank.

2.Adaptive Cleaning Parameters: User-defined thermal profiles (20°C-95°C) and cycle durations (0-99H).

3.Military-Grade Build: SUS304 stainless steel housing passes IP66 standards for washdown areas.

4.Lifetime-Guaranteed Transducers: German-engineered piezoelectrics with 5-year warranty.

5.EPA-Compliant Operations: Reduce wastewater generation and VOC emissions by 38% annually.

6.IIoT-Ready Safety: Cloud-connected sensors monitor tank conditions and trigger emergency protocols.

7.Bespoke Engineering: Custom-width chambers and multi-frequency options (28/40 kHz).

8.Productivity Packages: Add passivation stations for medical devices or part-loading robots for Tier 1 automotive suppliers.

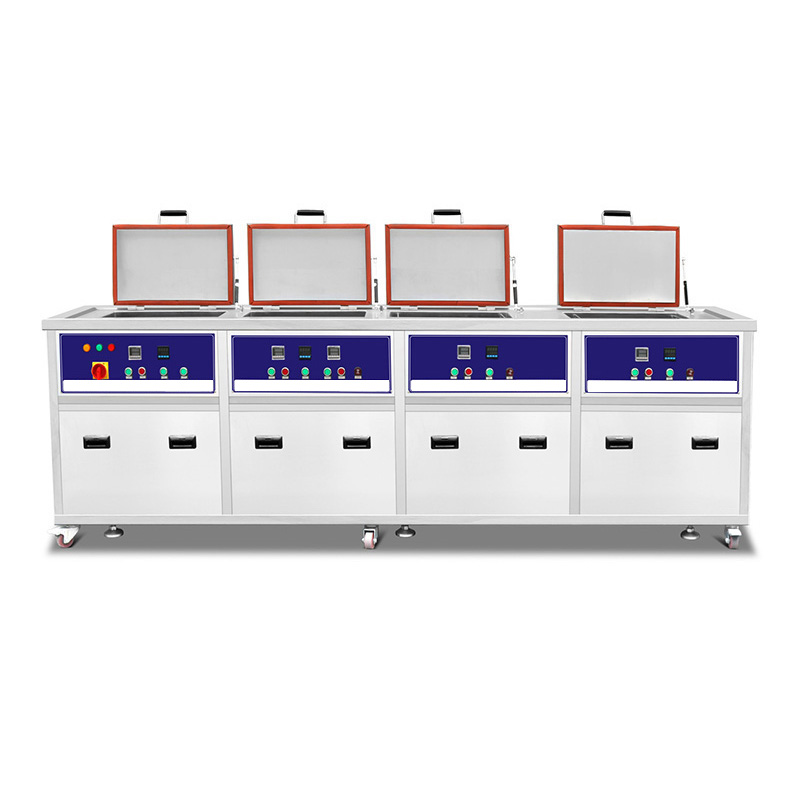

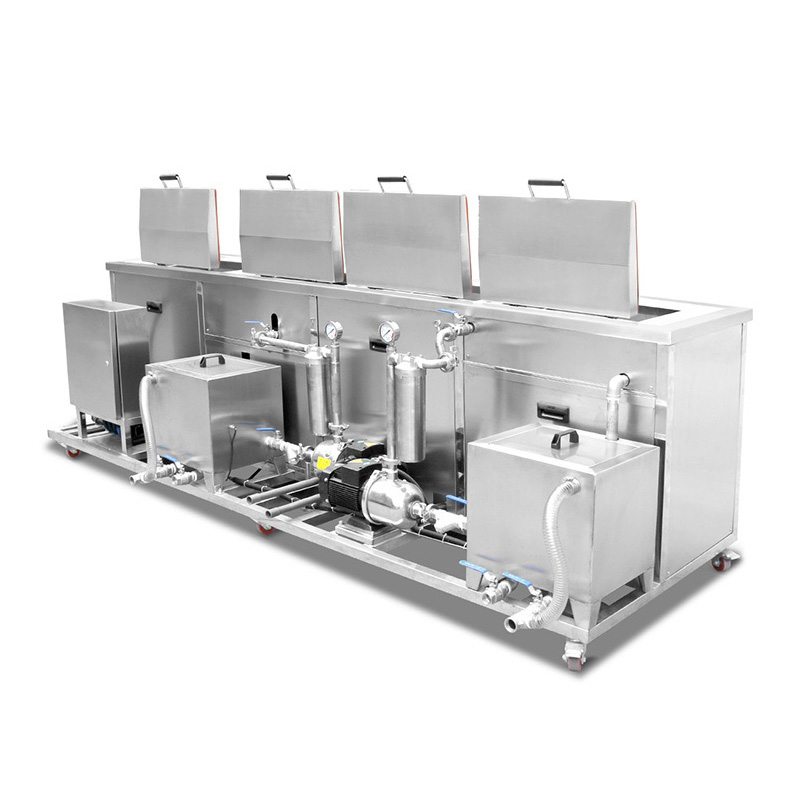

 4-tank Ultrasonic Cleaner (Cleaning with filtration system +rinsing+spraying+drying)
ModelInner tank size(MM)Capacity(L)Transducer(pc)Frequency(KHz)Ultrasonic power(W)Heating power(W)Drying powerTimer(H)Temp(℃)Drying temp
JP-4024GPH500*300*250mm38L2428/40KHz optional600W*21500W*23000W0-99HRoom temp-95℃Room temp-150℃
JP-4036GPH500*350*300mm53L3628/40KHz optional900W*21500W*23000W0-99HRoom temp-95℃Room temp-150℃
JP-4048GPH550*400*350mm77L4828/40KHz optional1200W*23000W*23000W0-99HRoom temp-95℃Room temp-150℃
JP-4060GPH550*450*400mm99L6028/40KHz optional1500W*23000W*24500W0-99HRoom temp-95℃Room temp-150℃
JP-4061GPH800*300*400mm96L6028/40KHz optional1500W*23000W*24500W0-99HRoom temp-95℃Room temp-150℃
JP-4072GPH600*500*450mm135L7228/40KHz optional1800W*24500W*24500W0-99HRoom temp-95℃Room temp-150℃
JP-4096GPH700*500*500mm175L9628/40KHz optional2400W*26000W*26000W0-99HRoom temp-95℃Room temp-150℃
JP-4120GPH800*600*550mm264L12028/40KHz optional3000W*26000W*26000W0-99HRoom temp-95℃Room temp-150℃
JP-4144GPH1000*600*600mm360L14428/40KHz optional3600W*29000W*26000W0-99HRoom temp-95℃Room temp-150℃
JP-4168GPH1500*700*400mm420L16828/40KHz optional4200W*212000W*26000W0-99HRoom temp-95℃Room temp-150℃
JP-4192GPH1200*500*800mm480L19228/40KHz optional4800W*212000W*29000W0-99HRoom temp-95℃Room temp-150℃
JP-4216GPH1000*900*600mm540L21628/40KHz optional5400W*218000W*29000W0-99HRoom temp-95℃Room temp-150℃
JP-4240GPH1000*800*800mm640L24028/40KHz optional6000W*218000W*29000W0-99HRoom temp-95℃Room temp-150℃
JP-4264GPH1000*1000*800mm800L26428/40KHz optional6600W*224000W*212000W0-99HRoom temp-95℃Room temp-150℃
JP-4288GPH1200*1000*800mm960L28828/40KHz optional7200W*224000W*212000W0-99HRoom temp-95℃Room temp-150℃
JP-4432GPH1500*1000*1000mm1500L43228/40KHz optional10800W*230000W*215000W0-99HRoom temp-95℃Room temp-150℃


Application Effect

Ultrasonic cleaning provides a fast and effective way to eliminate oil, grease, rust, glue, and other debris. It's particularly useful for reaching blind holes, narrow gaps, and difficult-to-access areas on different types of workpieces.

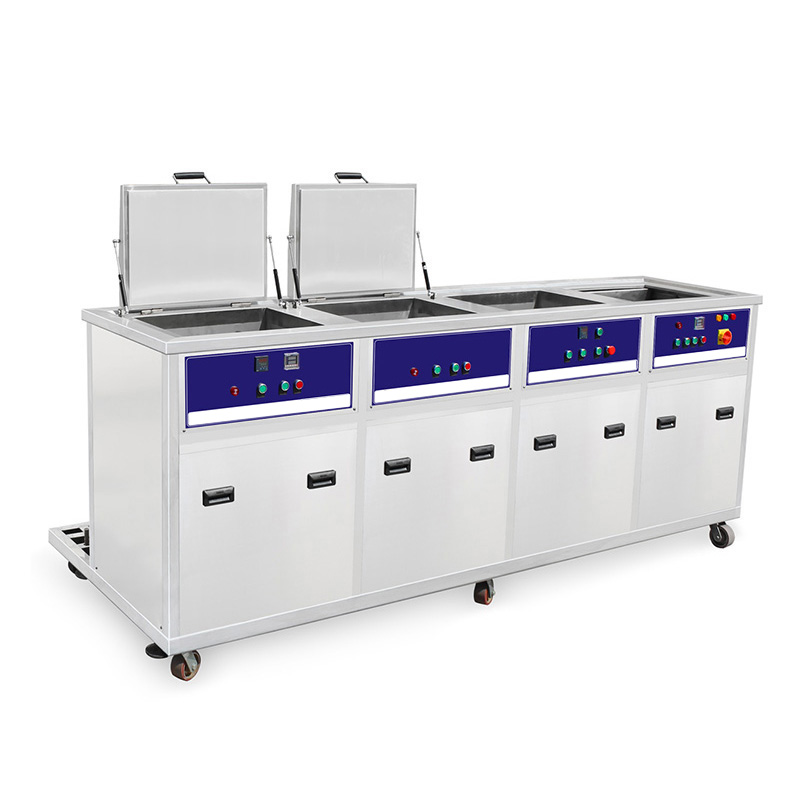

4-tank Ultrasonic Cleaner
